Brother DCP-8157DN User Manual

3-48
Confidential

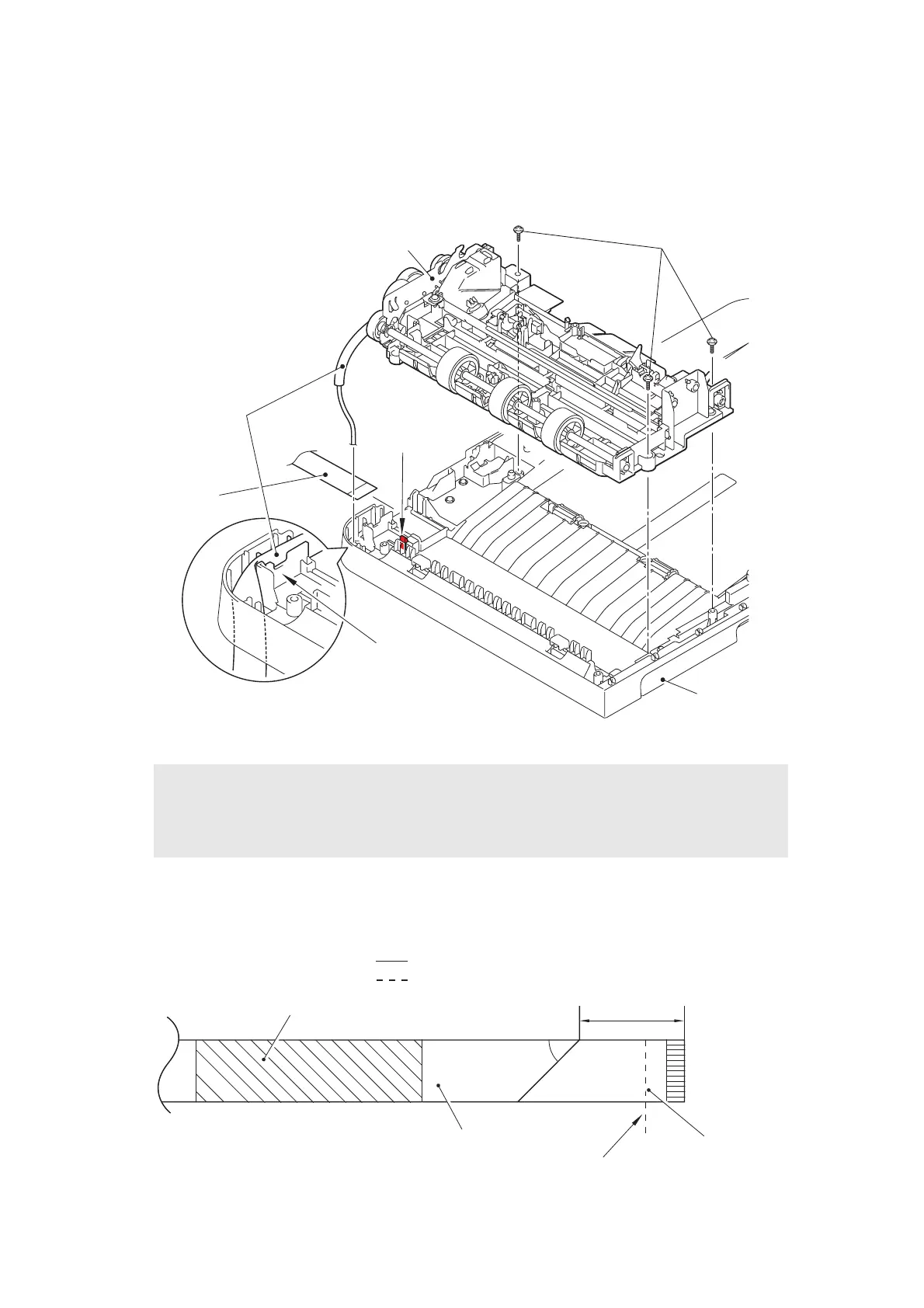

(4) Release the ADF motor harness from the guide of the document cover ASSY.
(5) Remove the three taptite cup B M3x10 screws from the lower ADF chute.
(6) Release the hook, and remove the lower ADF chute from the document cover ASSY.
(7) Remove the second side CIS flat cable.
Fig. 3-54
<Attachment Procedure>
1) Fold the second side CIS flat cable as shown in the illustration below. (Common to Legal /
A4 models)
Fig. 3-55
Assembling Note:
• The second side CIS flat cable may have been damaged when it was removed from the
FFC holder ASSY. Be sure to replace the second side CIS flat cable with a new one.
Follow the procedure below to attach the new second side CIS flat cable.
Taptite cup B M3x10
Hook
Document cover
ASSY
Lower ADF chute
ADF motor harness
Guide
Second side
CIS flat cable
Mountain fold
Valley fold
Reinforcing tape
Second side CIS flat cable
Fold at edge of reinforcing plate
20mm
45°
Reinforcing plate

Brother DCP-8157DN Specifications

General

Print Technology	Laser
Max Resolution (B&W)	1200 x 1200 dpi
Duplex Printing	Yes
Scan Resolution	1200 x 1200 dpi
Network Ready	Yes
Functions	Copier, Printer, Scanner
Scanner Type	Flatbed, ADF
Interface	USB, Ethernet
Print Resolution	1200 x 1200 dpi
Connectivity	USB, Ethernet
Operating Systems Compatibility	Windows, Mac, Linux
