3-107
Confidential
9.41 Eject sensor PCB ASSY
(1) Release the eject sensor harness from the securing fixtures.
(2) Release the hook, and remove the eject sensor PCB ASSY from the machine.

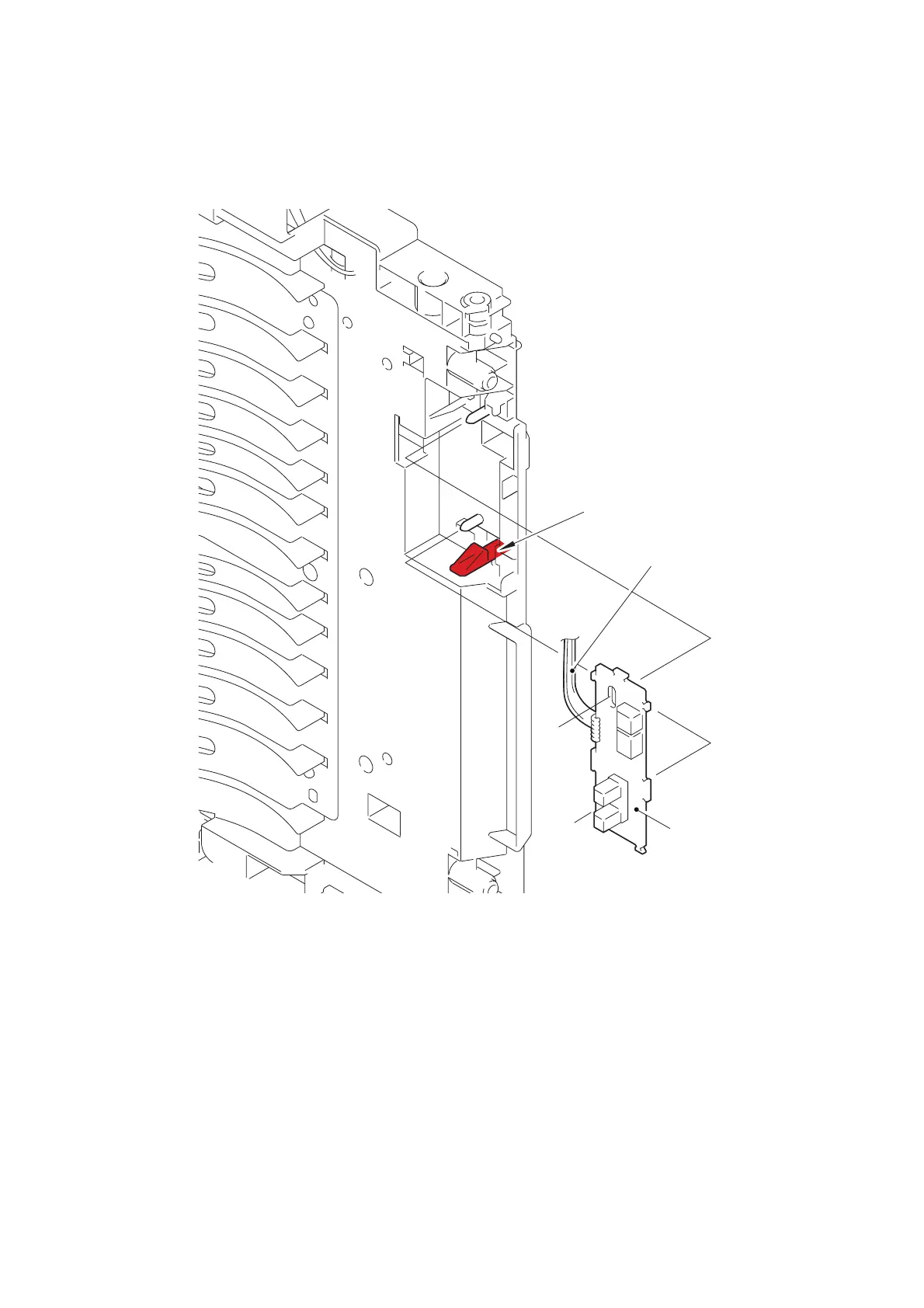

Fig. 3-136
Harness routing: Refer to “4.High-voltage power supply PCB ASSY”.
Hook
Eject sensor PCB ASSY
Eject sensor harness
