Brother DCP-8157DN User Manual

3-106
Confidential
(3) Disconnect the registration front/rear sensor harness, the T1 paper feed sensor harness
and the MP paper empty sensor harness from the high-voltage power supply PCB
ASSY, and remove the high-voltage power supply PCB ASSY from the machine.
(4) Disconnect the main HVPS flat cable from the high-voltage power supply PCB ASSY.

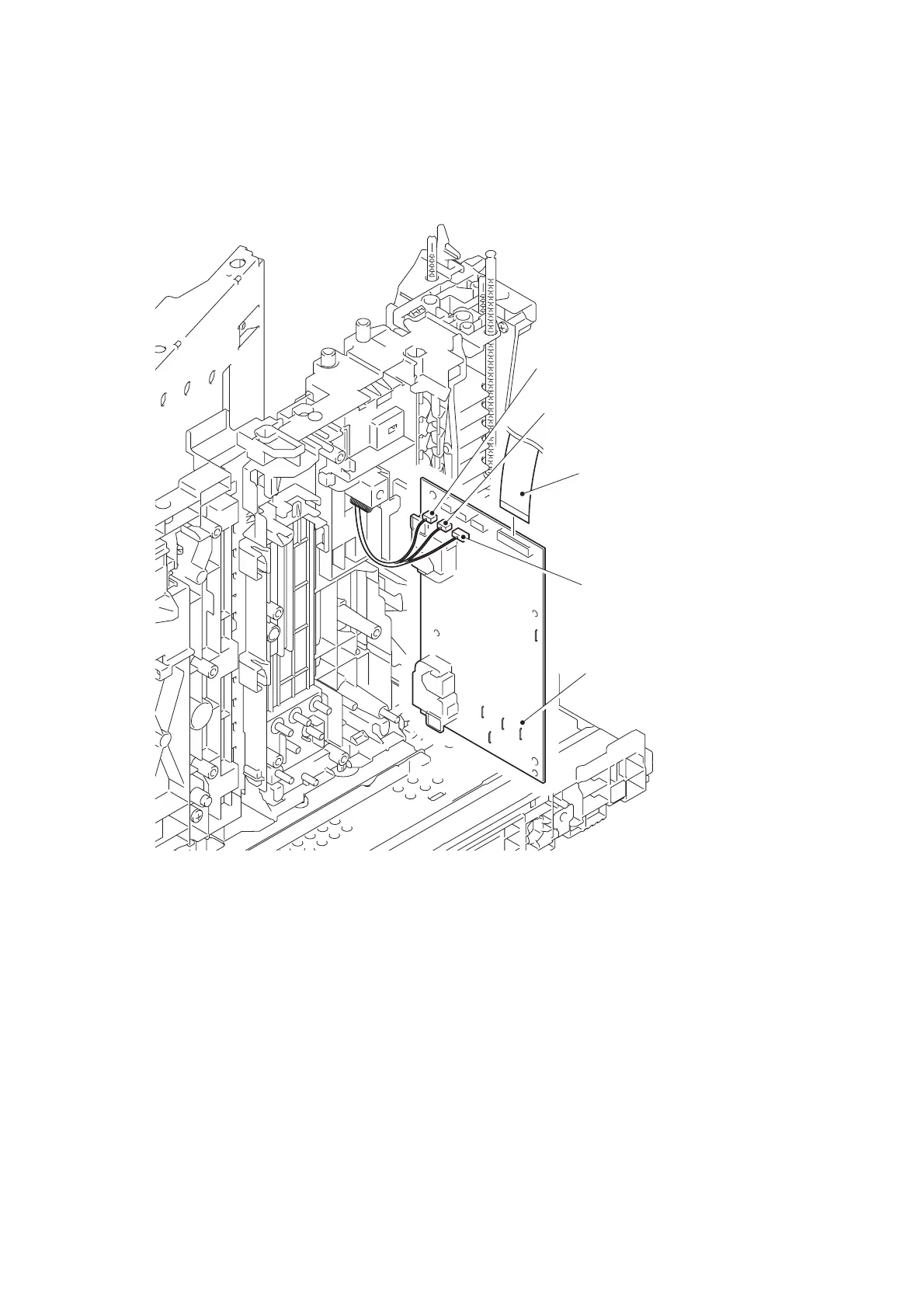

Fig. 3-135
Harness routing: Refer to “4.High-voltage power supply PCB ASSY”.
Main HVPS flat cable
High-voltage power supply PCB ASSY
Registration front/rear sensor harness
T1 paper feed sensor harness
MP paper empty sensor harness
