3-105
Confidential
(2) Open the HV insulation sheet. Remove the two taptite bind B M4x12 screws, and
release the two hooks. Lift the HV insulation sheet and the high-voltage power supply
PCB ASSY, and remove the feed earth spring from the machine.

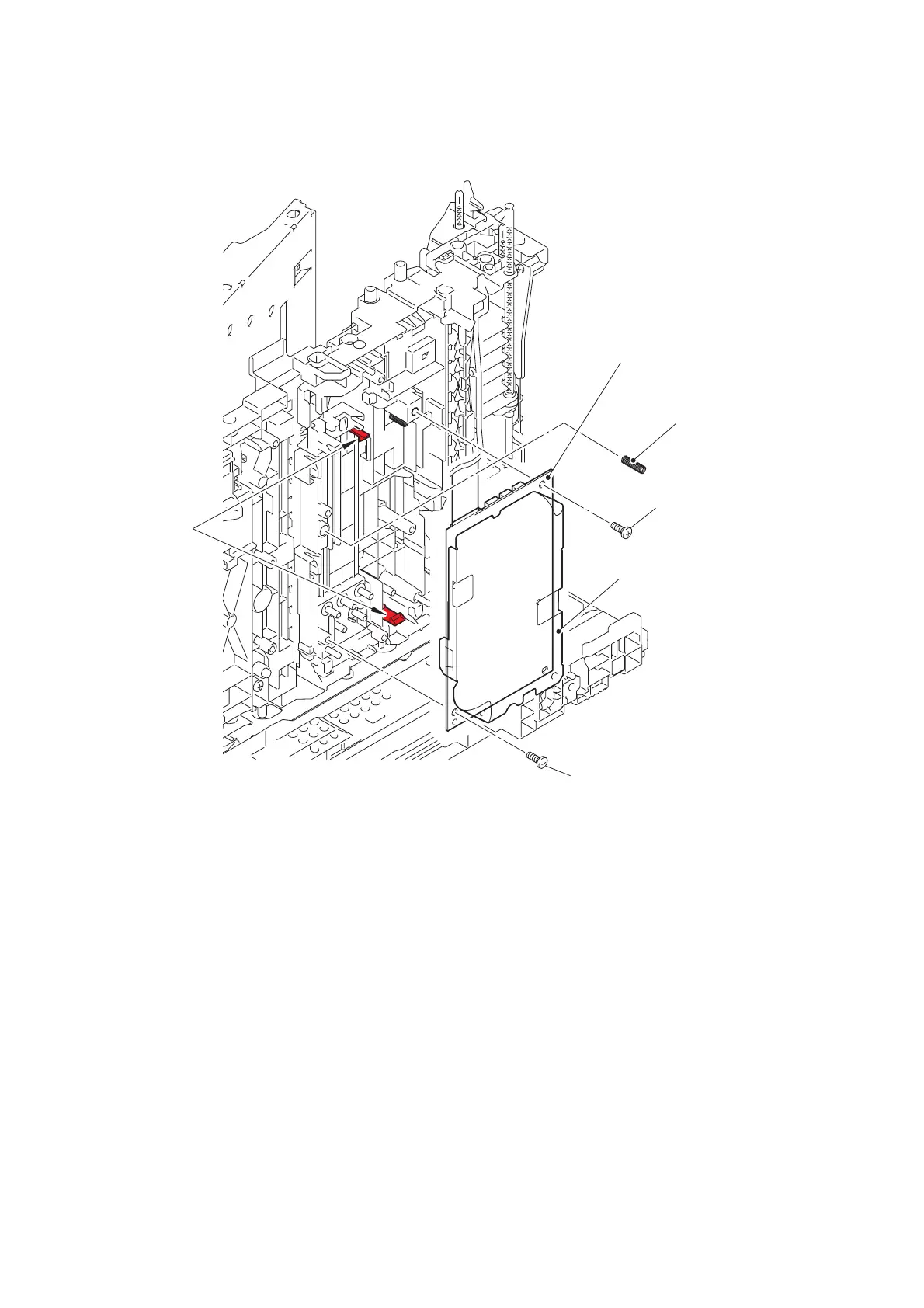

Fig. 3-134
Feed earth spring
Taptite bind B M4x12
Hooks
HV insulation sheet
High-voltage power supply PCB ASSY
Taptite bind B M4x12
