Brother DCP-8157DN User Manual

2-12
Confidential
2.5 Main Components

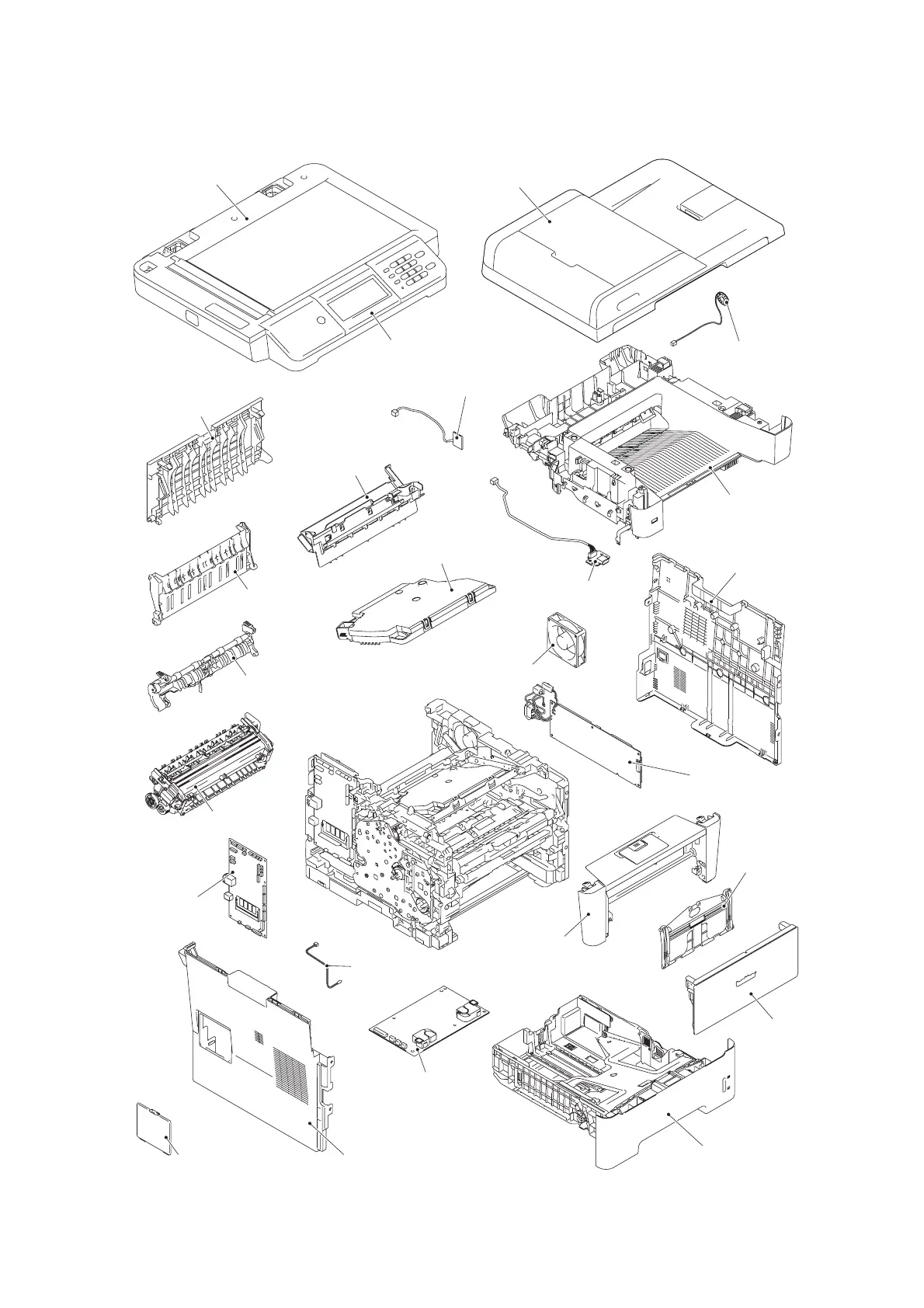

Fig. 2-8
Outer chute
ADF unit
Document scanner unit
Control panel ASSY
Wireless LAN PCB ASSY
Speaker unit
Joint cover
USB host PCB ASSY
Main fan
Side cover R ASSY
Laser unit
Air duct
Back cover
Fuser cover
Fuser unit
Main PCB
ASSY
Access cover
Side cover L
Paper tray 1
MP cover
ASSY
Front cover ASSY
Internal temperature
thermistor
High-voltage
power supply
PCB ASSY
Low-voltage
power supply
PCB ASSY
MP paper
guide ASSY

Brother DCP-8157DN Specifications

General

Print Technology	Laser
Max Resolution (B&W)	1200 x 1200 dpi
Duplex Printing	Yes
Scan Resolution	1200 x 1200 dpi
Network Ready	Yes
Functions	Copier, Printer, Scanner
Scanner Type	Flatbed, ADF
Interface	USB, Ethernet
Print Resolution	1200 x 1200 dpi
Connectivity	USB, Ethernet
Operating Systems Compatibility	Windows, Mac, Linux
