Brother DCP-8157DN User Manual

3-70
Confidential
9.16 NCU PCB ASSY
(1) Remove the screw pan (S/P washer) M3.5x6 DA screw and washer 5 to remove the
NCU earth harness. Release the NCU harness and the NCU earth harness from the
securing fixtures.
(2) Remove the two taptite bind B M4x12 screws to remove the NCU unit from the joint
cover.
(3) Remove the screw pan (S/P washer) M3.5x6 DA screw and washer 5 to remove the
NCU shield cover.
(4) Remove the two taptite cup S M3x6 SR screws to remove the NCU PCB ASSY.

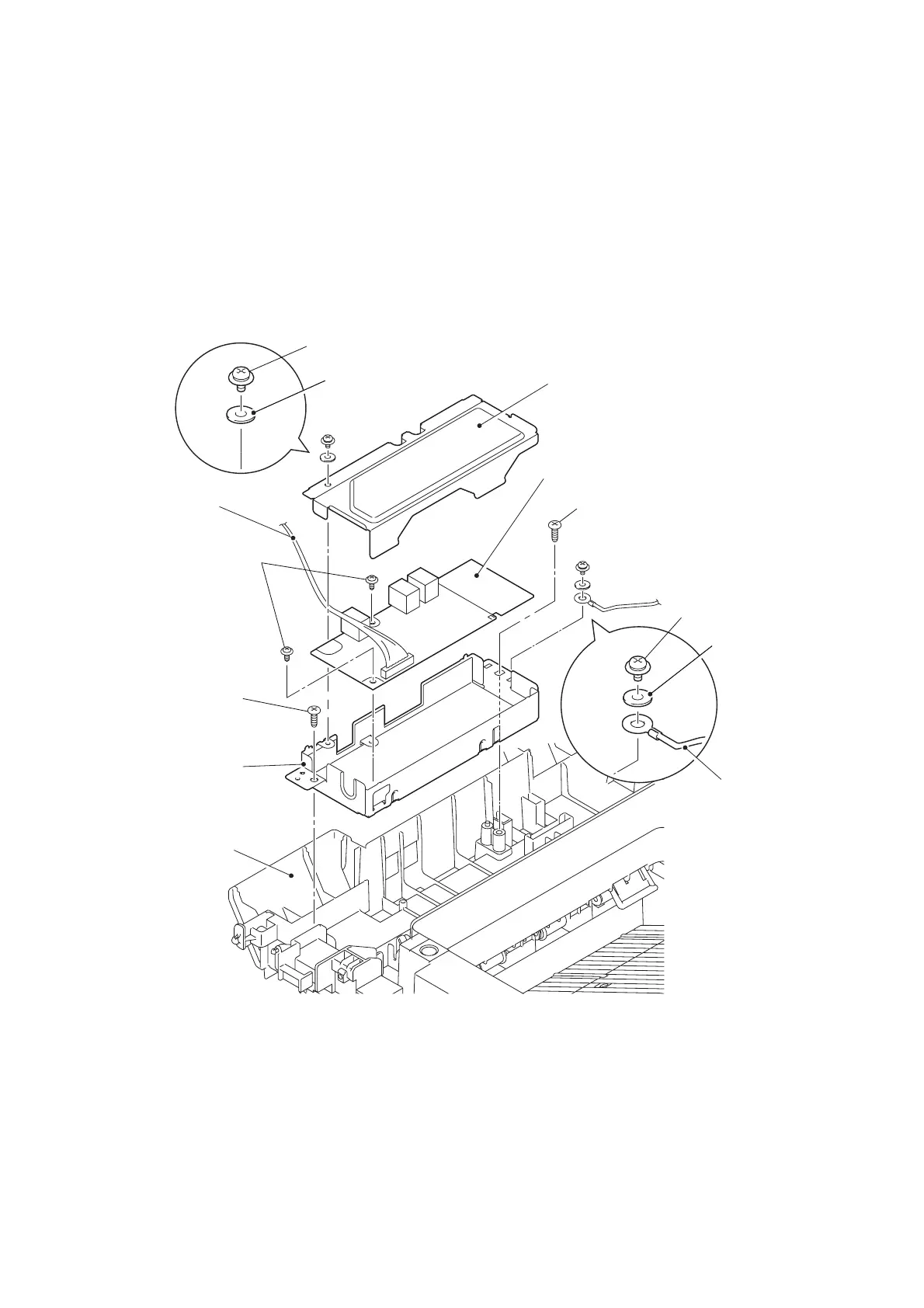

Fig. 3-96
Harness routing: Refer to “8.NCU PCB ASSY / Speaker unit”.
NCU shield cover
Screw pan (S/P washer)
M3.5x6 DA
Taptite cup S M3x6 SR
Taptite bind B M4x12
NCU unit
Joint cover
Screw pan (S/P washer)
M3.5x6 DA
NCU PCB ASSY
NCU earth harness
NCU harness
Taptite bind B M4x12
Washer 5
Washer 5

Brother DCP-8157DN Specifications

General

Print Technology	Laser
Max Resolution (B&W)	1200 x 1200 dpi
Duplex Printing	Yes
Scan Resolution	1200 x 1200 dpi
Network Ready	Yes
Functions	Copier, Printer, Scanner
Scanner Type	Flatbed, ADF
Interface	USB, Ethernet
Print Resolution	1200 x 1200 dpi
Connectivity	USB, Ethernet
Operating Systems Compatibility	Windows, Mac, Linux
