Brother DCP-8157DN

3-41
Confidential
9.9.9 Second side CIS unit / Second side CIS flat cable (duplex scanning models
only)

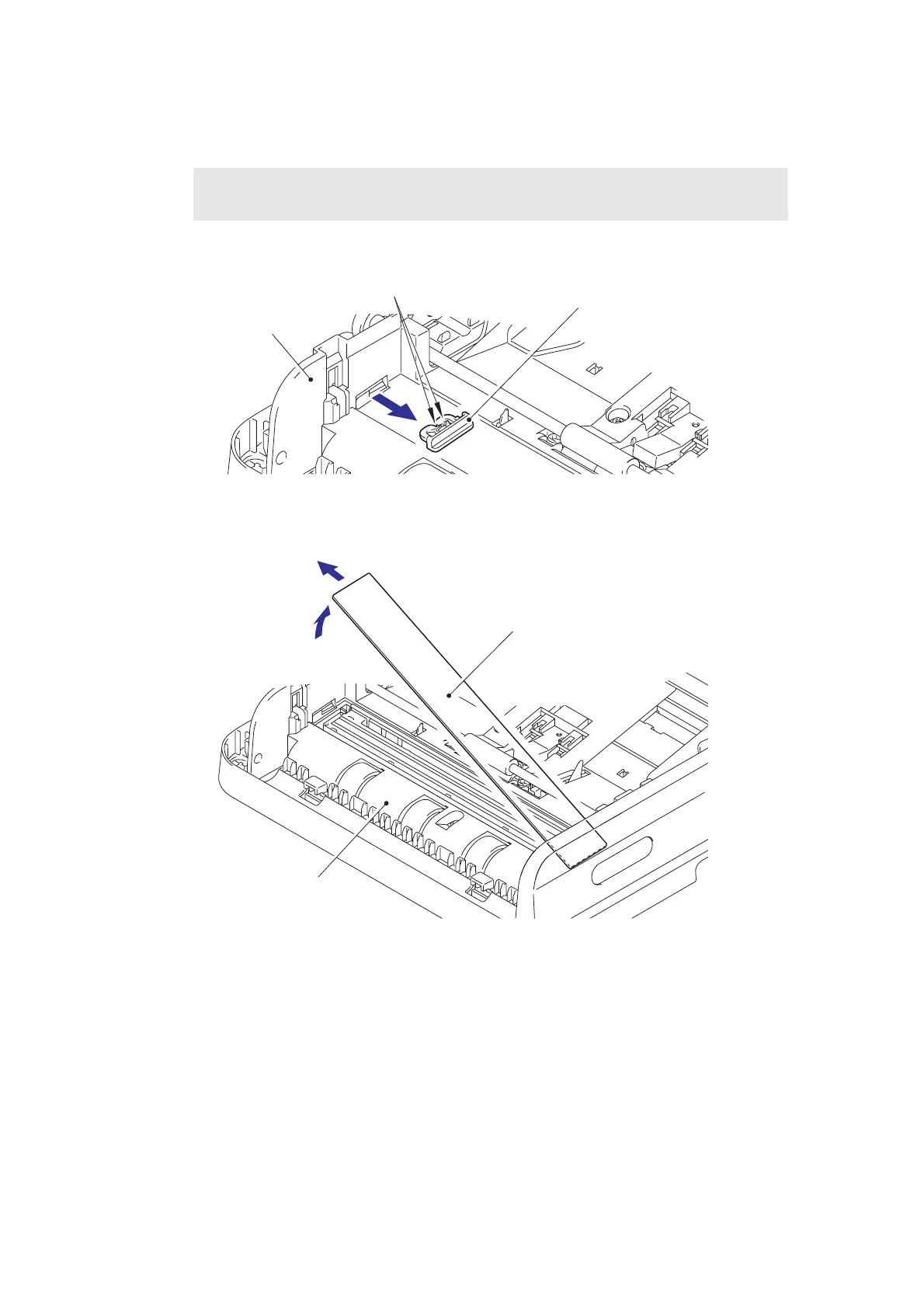

(1) Release the two hooks, and remove the CIS glass stopper from the ADF unit.
Fig. 3-43
(2) Remove the CIS glass from the ADF unit.
Fig. 3-44
Note:
• Perform disassembly in a dust-free location.
ADF unit
CIS glass stopper
Hooks
ADF unit
CIS glass
