3-44
Confidential
(6) Remove the five taptite cup B M3x10 screws from the upper ADF chute.
(7) Remove the upper ADF chute from the ADF unit, and pull out the second side CIS flat
cable from the upper ADF chute.

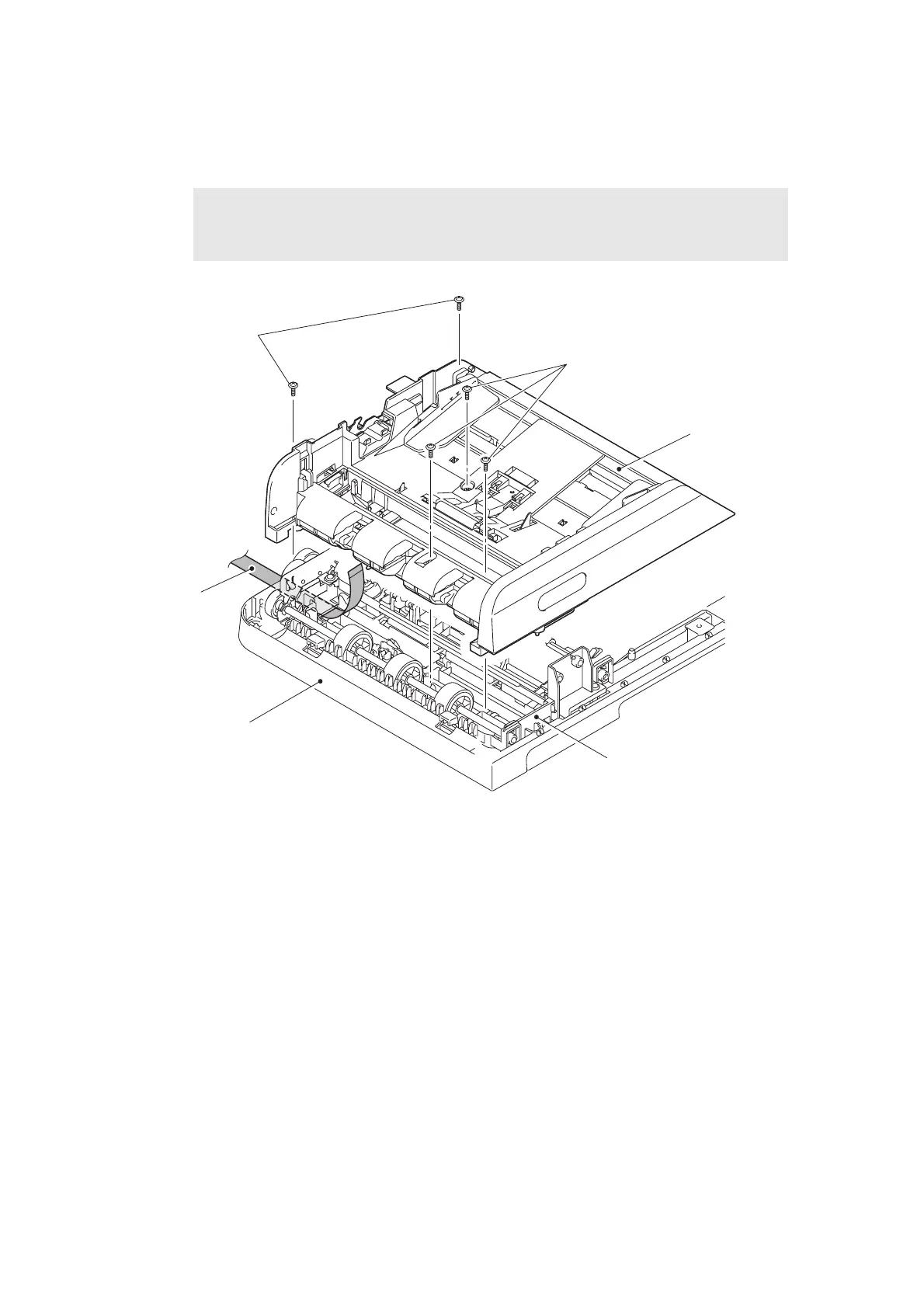

Fig. 3-48
Note:
• Do not disconnect the second side CIS flat cable from the ADF lower chute in this
process as it cannot be connected when the ADF lower chute is attached.
Taptite cup B M3x10
Taptite cup B M3x10
Upper ADF chute
ADF unit
Second side
CIS flat cable
Lower ADF chute
