Brother DCP-8157DN User Manual

7-17
Confidential

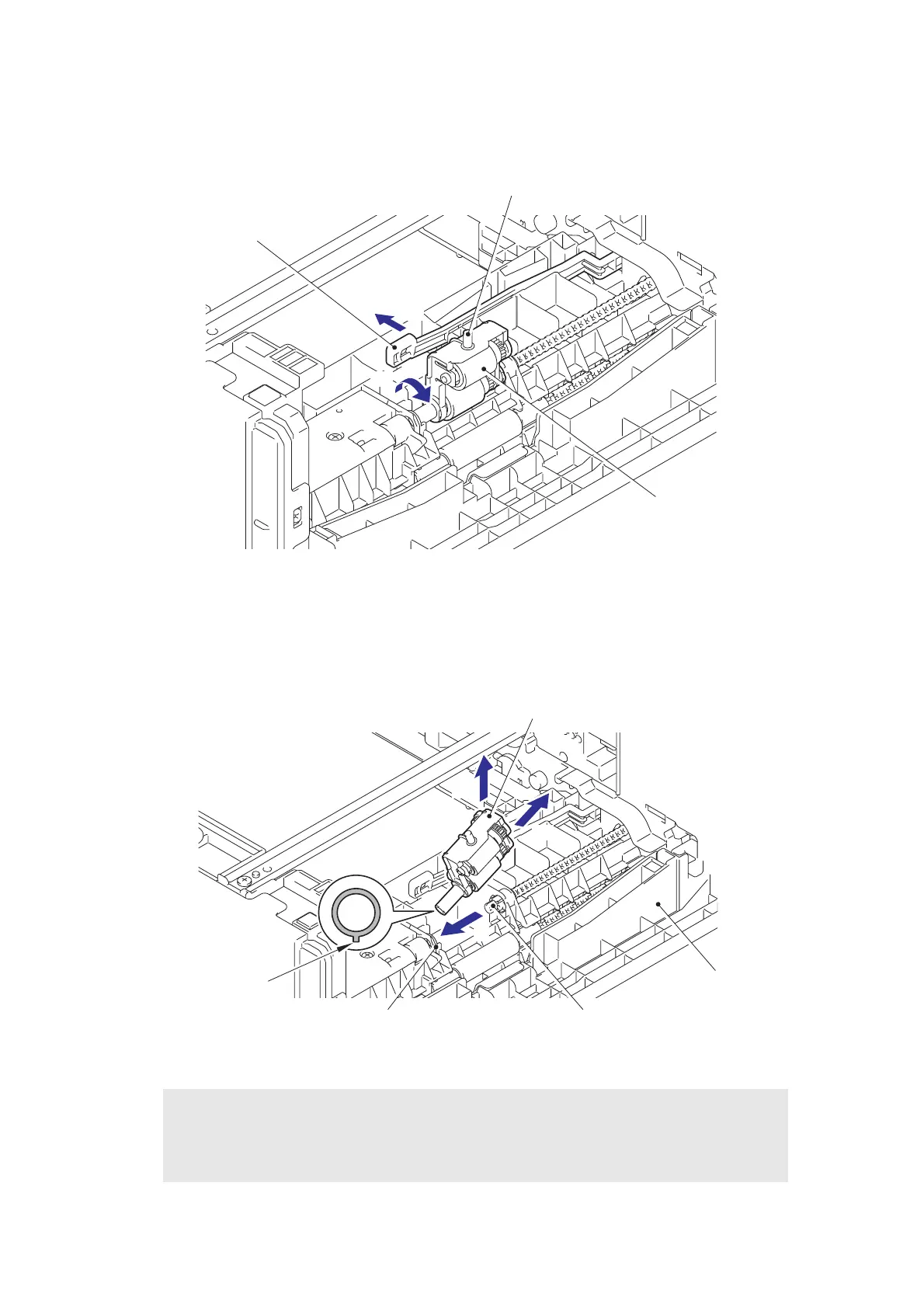

(6) Push the T2 lift arm in the direction of arrow 6a, and remove the boss on the T2 roller
holder ASSY from the T2 lift arm. Then turn the T2 roller holder ASSY in the direction of
arrow 6b.
Fig. 7-23
(7) Slide the T2 roller holder ASSY in the direction of arrow 7 to remove it from the T2
separation roller shaft.
(8) Lift the right side of the T2 roller holder ASSY in the direction of arrow 8a, and pull the T2
roller holder ASSY in the direction of arrow 8b to remove it from the LT unit.
Fig. 7-24
Assembling Note:
• When attaching the T2 roller holder ASSY, engage "A" on the shaft of the T2 roller
holder ASSY with the hole on the T2 feed frame ASSY, and insert the shaft into the
hole.
Boss
6a
6b
T2 lift arm
T2 roller holder ASSY
8a
T2 roller holder ASSY
LT unit
T2 separation roller shaft
8b
7
“A”
T2 feed frame ASSY

Brother DCP-8157DN Specifications

General

Print Technology	Laser
Max Resolution (B&W)	1200 x 1200 dpi
Duplex Printing	Yes
Scan Resolution	1200 x 1200 dpi
Network Ready	Yes
Functions	Copier, Printer, Scanner
Scanner Type	Flatbed, ADF
Interface	USB, Ethernet
Print Resolution	1200 x 1200 dpi
Connectivity	USB, Ethernet
Operating Systems Compatibility	Windows, Mac, Linux
