6. OVERVIEW OF GEARS
When ordering spare parts, please refer to Parts reference list.
■ Top drive ASSY

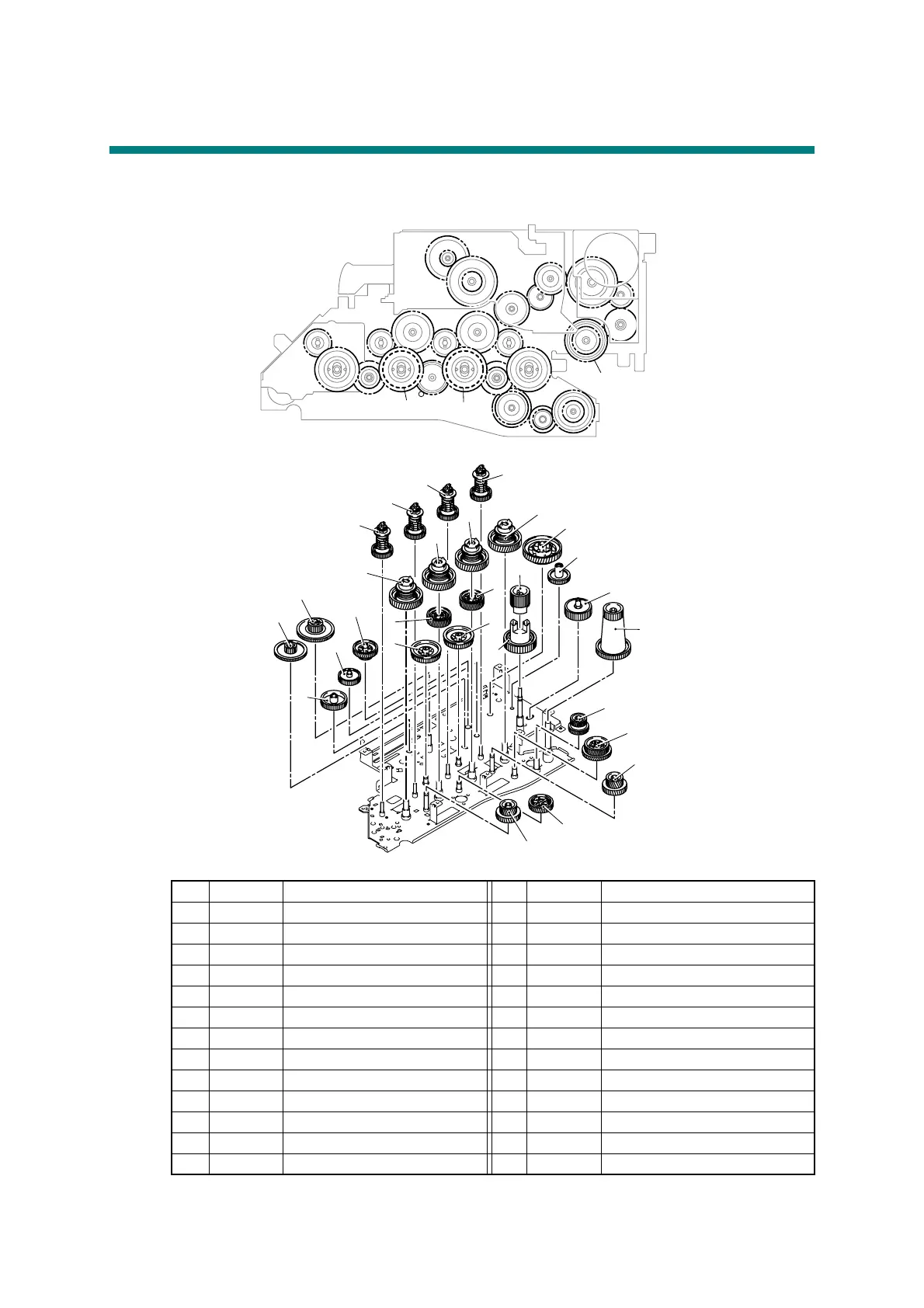

<Layout view>
<Development view>
<Name of gears>
* These parts are subject to change without notice.
1 LY0192 Develop joint gear Z48 15 LY0213 Gear Z60
2 LY0196 Drum coupling gear Z52 16 LY0217 Gear Z50
3 LY0197
Drum double idle gear Z64-26 17 LY0214 Gear Z63-30
4 LY0192 Develop joint gear Z48 18 LY0231 Gear Z100-47
5 LY0194 Develop idle gear Z66 19 LY0212 Gear Z37
6 LY0196 Drum coupling gear Z52 20 LY0211 Gear Z45
7 LY0198 D
rum idle gear Z64 21 LY0233 Fuser drive gear Z25
8 LY0192 Develop joint gear Z48 22 LY0216 Gear Z55
9 LY0199 D
rum idle gear Z64 first 23 LY0192 Develop joint gear Z48
10 LY0196 Drum coupling gear Z52 24 LY0197
Drum double idle gear Z64-26
11 LY0198 D rum idle gear Z64 25 LY0196 Drum coupling gear Z52
12 LY0194 Develop joint gear Z48 26 LY0203 Belt
idle gear Z64-75
13 LY0220 Gear Z54-18 27 LY0202 Belt
idle gear Z52-40
14 LY0219 Gear Z90-18 28 LY0201 Belt drive gear 25-80
