Brother HL-4150CDN - T1 Paper Edge Sensor PCB ASSY;T1 Paper Edge Actuator;T1 Paper Edge Actuator Spring

3-118
Confidential
9.48 T1 Paper Edge Sensor PCB ASSY/
T1 Paper Edge Actuator/
T1 Paper Edge Actuator Spring

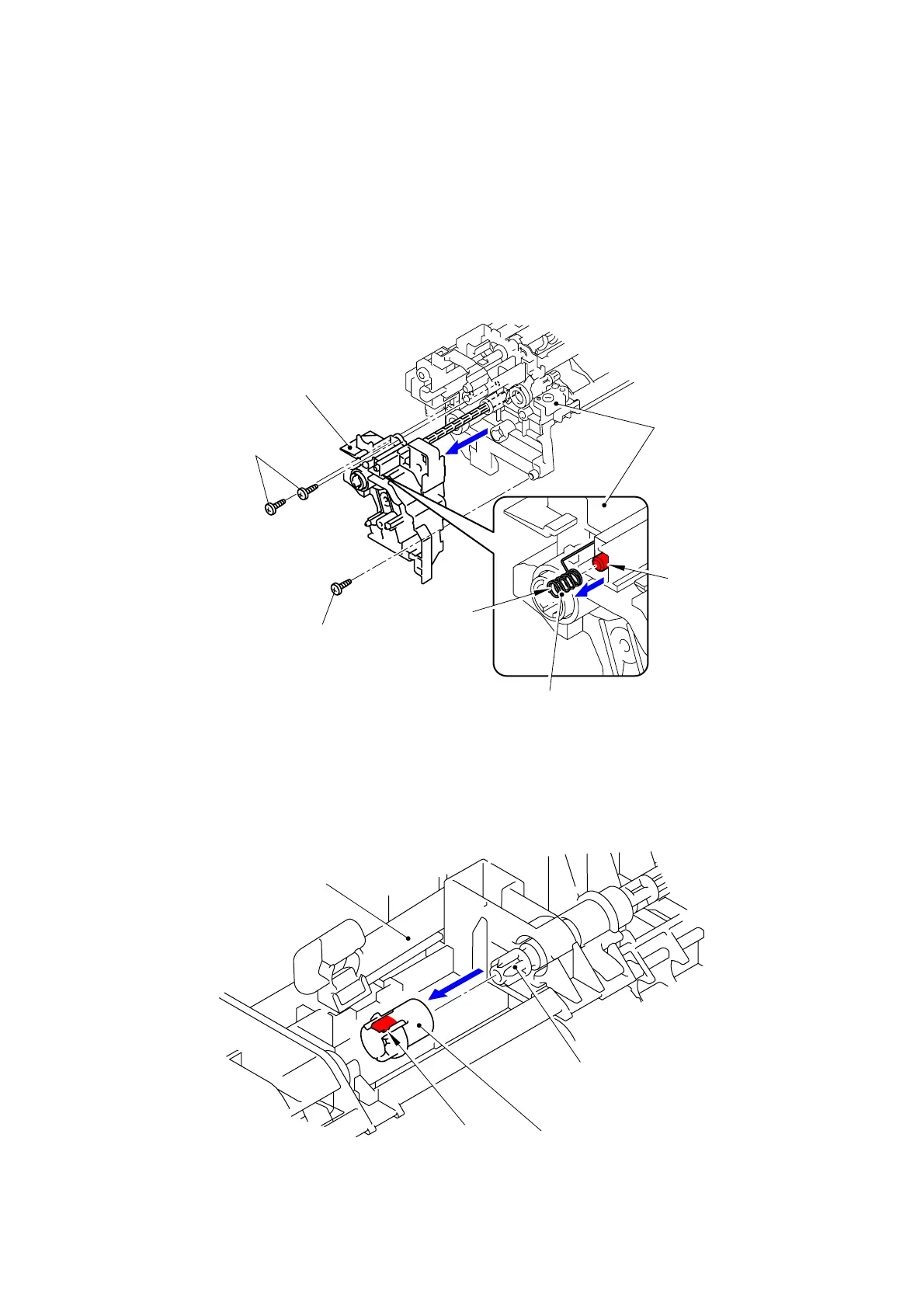

(1) Remove the three Taptite bind B M3x10 screws of the Pinch roller shaft sub ASSY from
the MP drive frame.
(2) Remove “A” of the Registration roller ground wire.
(3) Remove the MP drive frame from the PF ASSY.
Fig. 3-158
(4) Release the Hook to remove the Separation R shaft bush from the T1 drive shaft gear
Z17M07.
Fig. 3-159
Pin
MP drive frame
Registration roller ground wire
“A”
PF ASSY
Taptite bind B M3x10
Taptite bind B M3x10
Hook
T1 drive shaft gear Z17M07
Separation R shaft bush
PF ASSY
