Brother HL-4150CDN - Paper Feeding Kit1

7-25
Confidential

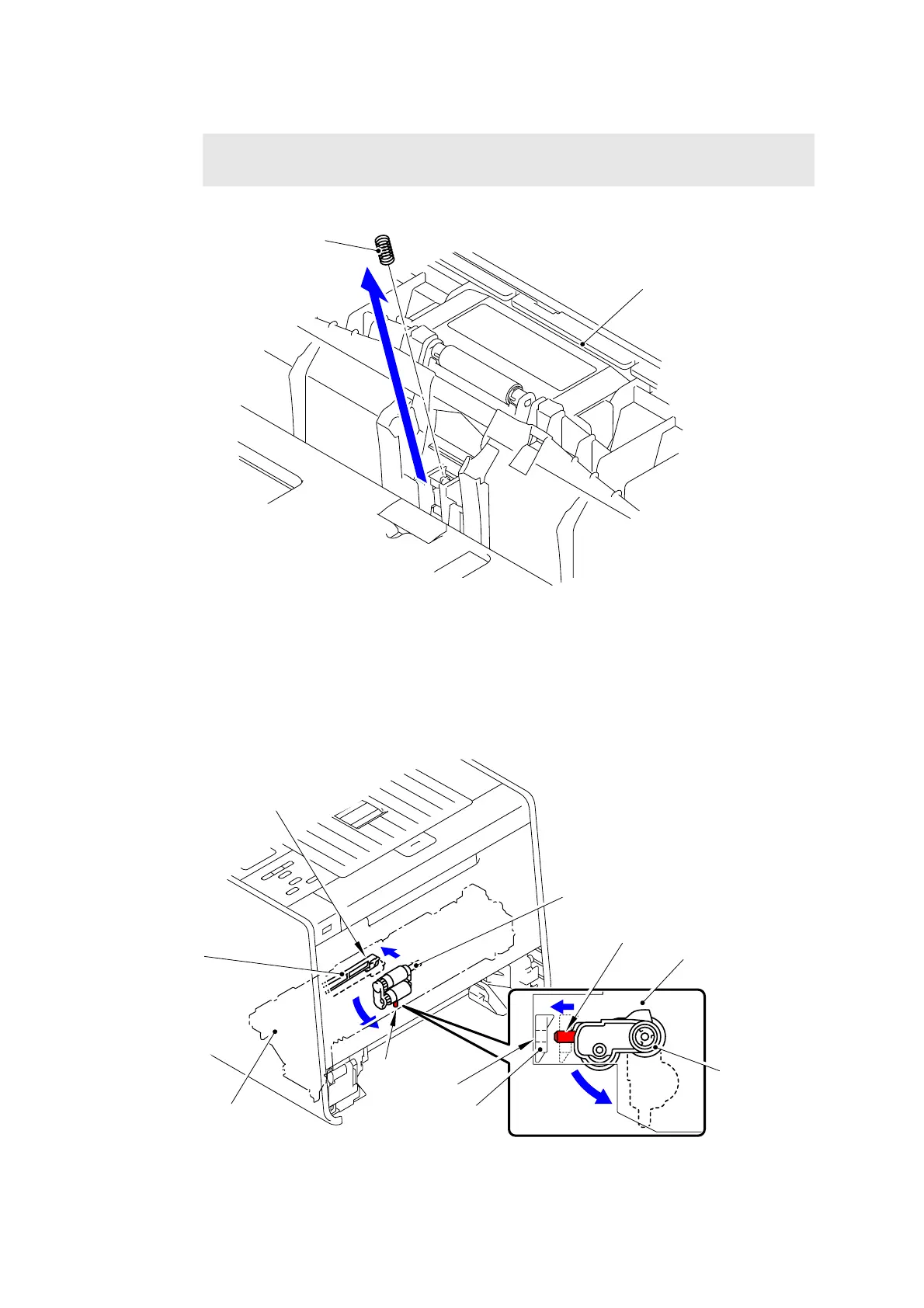

(2) Remove the T1 separation pad spring from the Paper tray.
Fig. 7-41
(3) Push the T1 lift arm to the back to remove “B” of the Roller holder ASSY from “A” of the T1
lift arm.
Fig. 7-42
Note:
Be careful not to lose the T1 separation pad spring.
Paper tray
T1 separation pad spring
“A”
“B”
T1 lift arm
Roller holder ASSY
“A”
“B”
Roller holder
ASSY
T1 lift arm
PF ASSY
PF ASSY
3b
3a
3a
3b
