[2] Printout of worker switch data (Function code 11)
<Function>
The printer prints out the setting items of the worker switches and their contents specified.
<Operating procedure>
(1) Press the or button to display “MAINTENANCE 11” on the LCD in the initial state of
the maintenance mode. Then, press the OK button. The printer displays “PRINTING” on
the LCD.

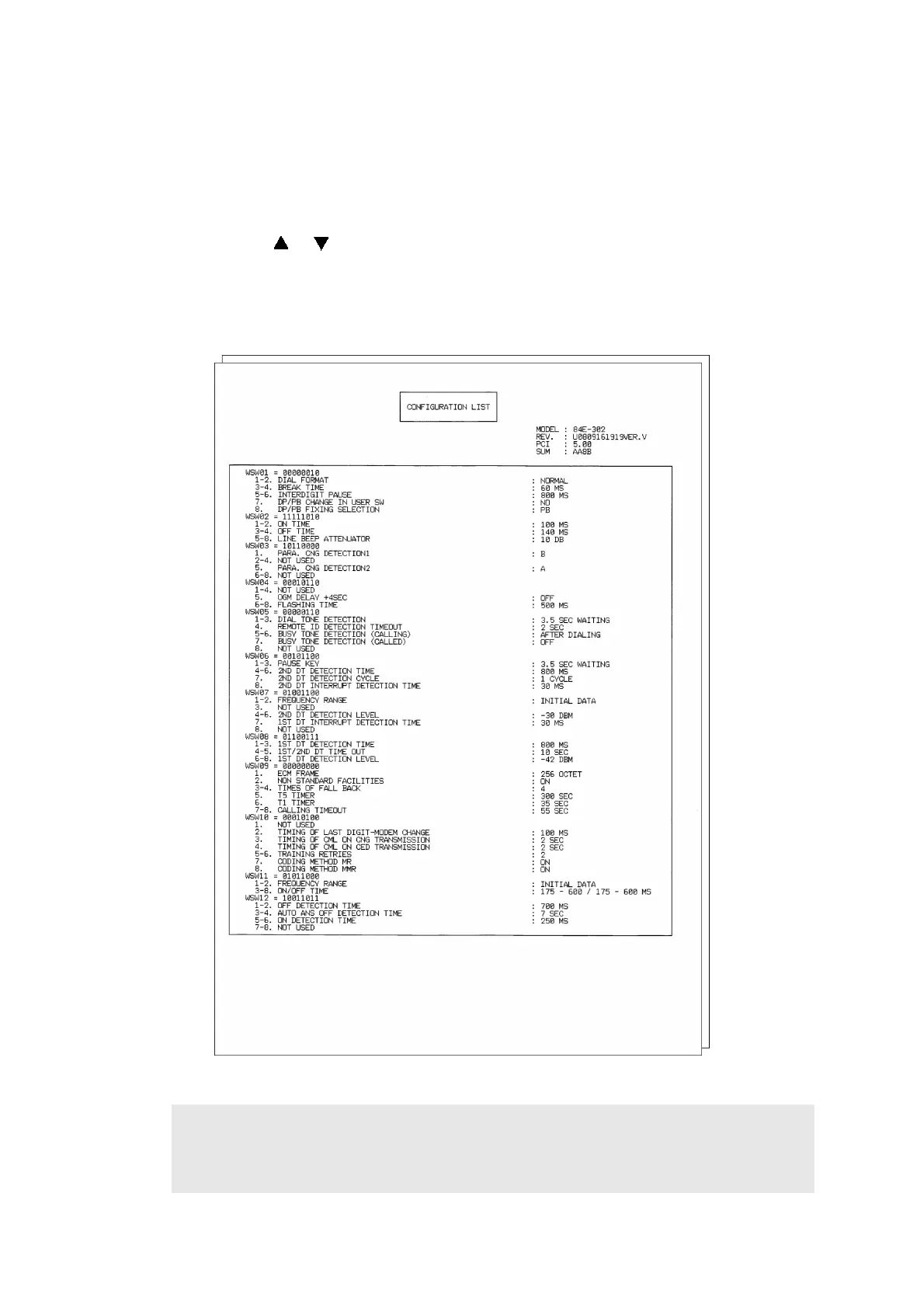

(2) Printing of the CONFIGURATION LIST (see the figure below) is started. When printing is
finished, the printer returns to the initial state of the maintenance mode.
Fig. 5-2
Note:
The function names specific to multi-function printers are printed in CONFIGURATION LIST
for convenience of program development. They are invalid in this printer and should be
ignored. These settings must not be changed.
