9.32 Internal Temperature Thermistor

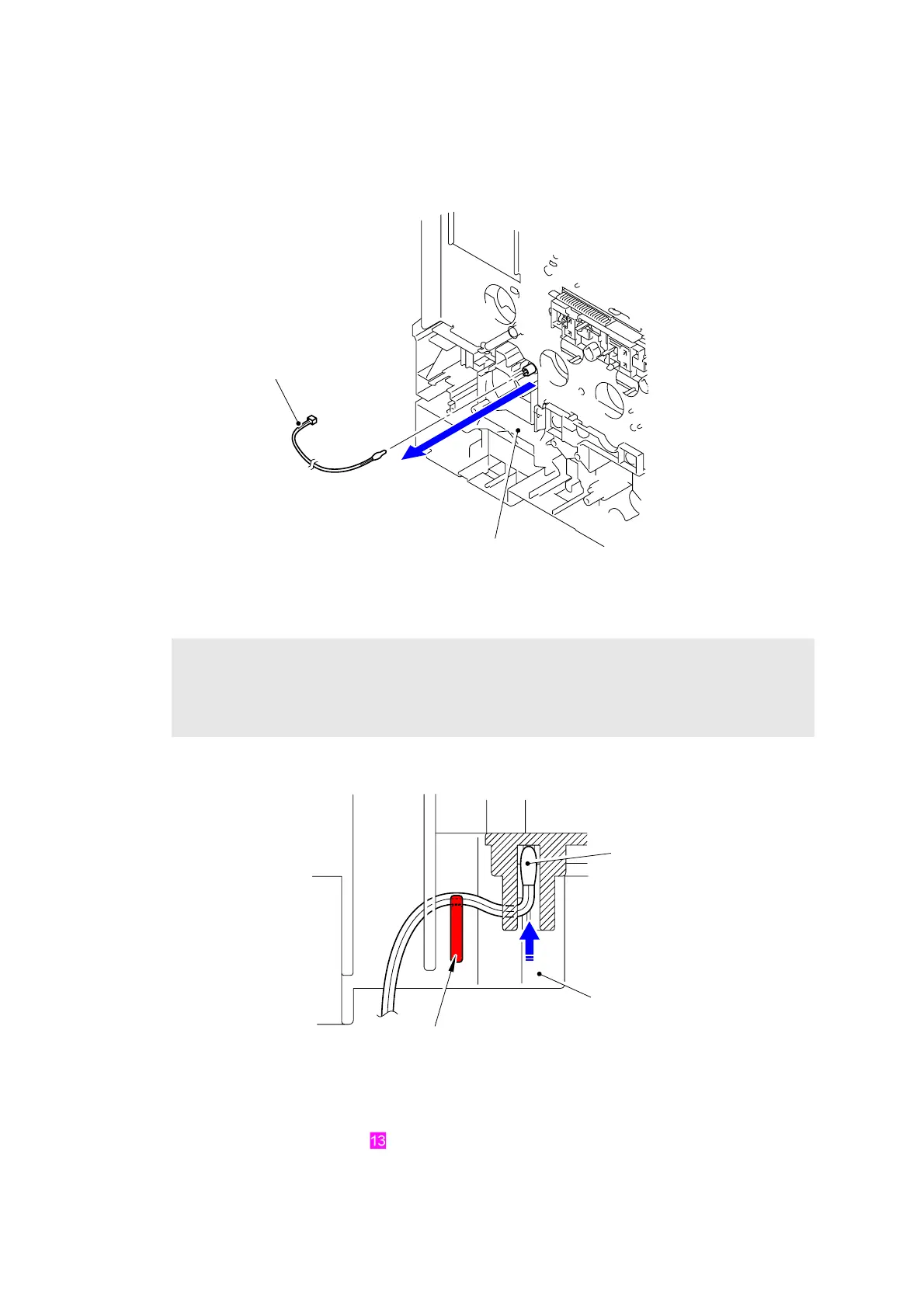

(1) Remove the Internal temperature thermistor from the Main body.
Fig. 3-101
Fig. 3-102
Harness routing: Refer to “ Internal Temperature Thermistor”
Assembling Note:
- Insert the tip of the Internal temperature thermistor firmly into the Insertion hole until it
reaches the end of the Hole.
- After inserting the Internal temperature thermistor, hang the Harness on the Hook.
<Left side>
Main body
Internal temperature thermistor
Main body
Internal temperature thermistor
Hook
To Next Page
