Brother HL-4150CDN - Side Cover R ASSY

3-36
Confidential
9.7 Side Cover R ASSY
(1) Remove the Taptite bind S M3x8 screw from the front of the Side cover R ASSY.
(2) Remove the Taptite bind B M4x12 screw from the side of the Side cover R ASSY.

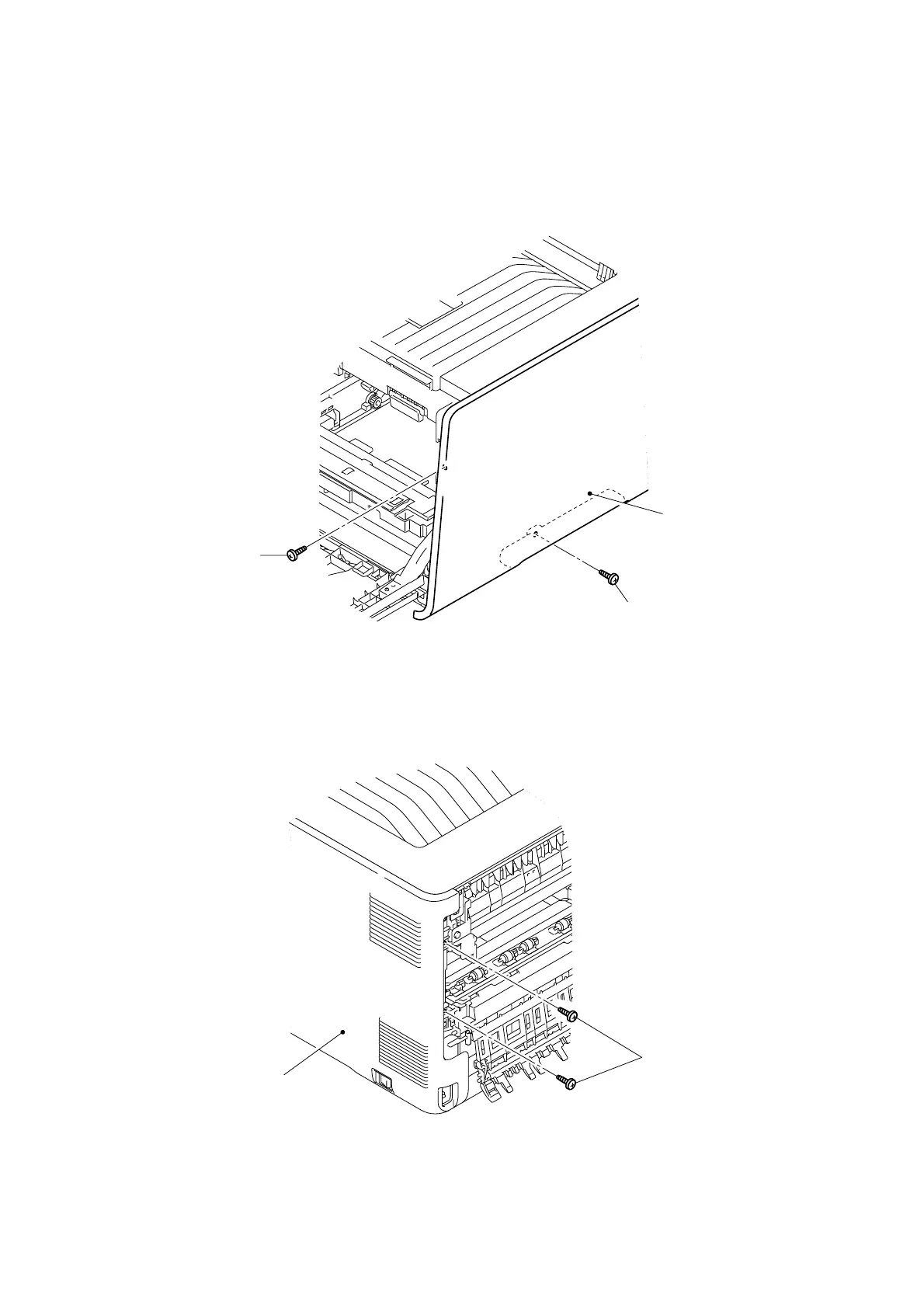

Fig. 3-24
(3) Remove the two Taptite cup S M3x8 screws from the back of the Side cover R ASSY .
Fig. 3-25
Side cover R ASSY
Taptite bind B M4x12
Taptite bind S M3x8
<Front>
Side cover R ASSY
Taptite cup S M3x8
<Back side>
