Brother HL-4150CDN - Develop Release Sensor PCB Assy;Mono Solenoid ASSY

3-77
Confidential
9.28 Develop Release Sensor PCB ASSY/Mono Solenoid ASSY

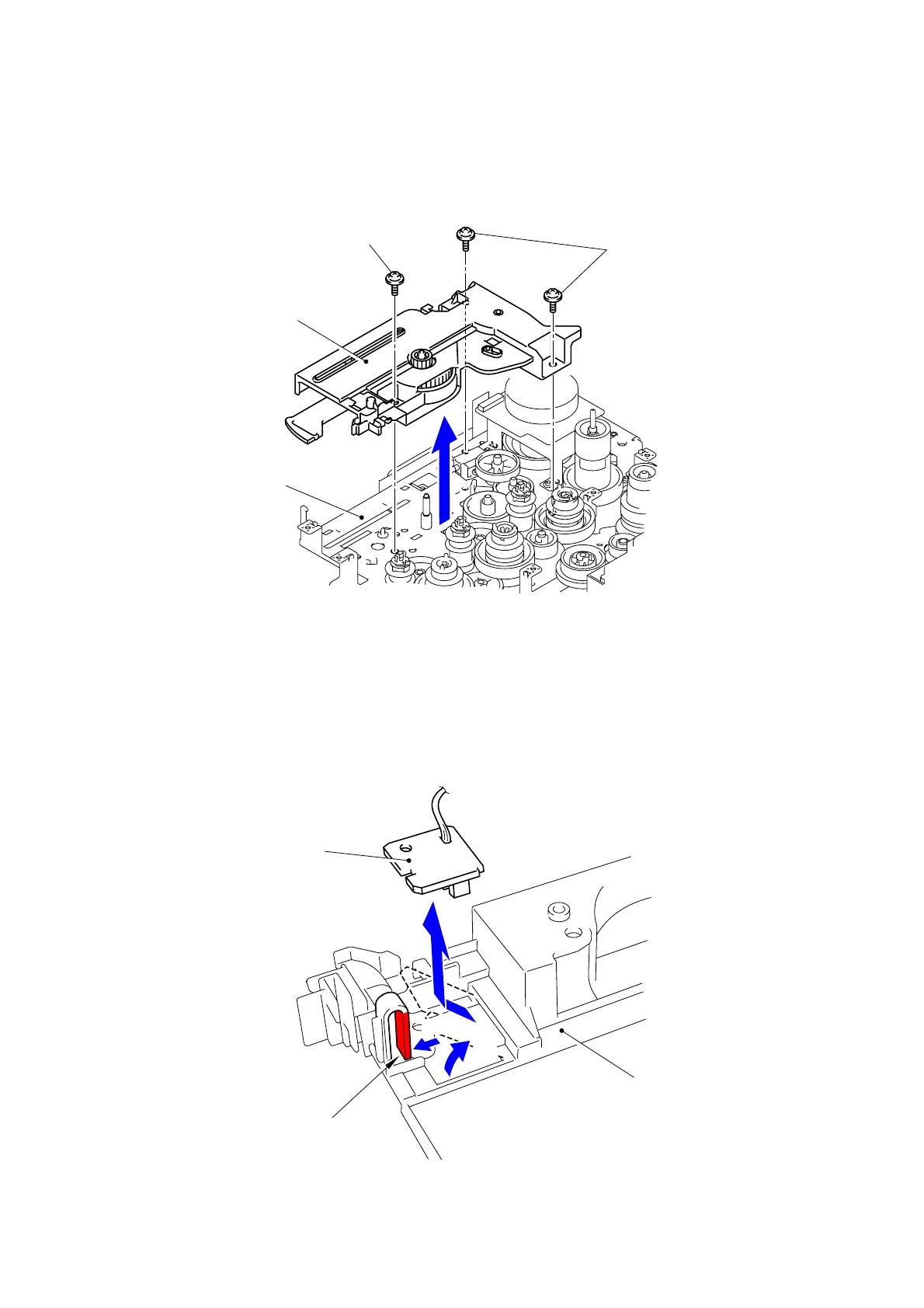

(1) Remove the three Taptite cup S M3x6 SR screws to remove the Top drive cover from the
Top drive ASSY.
Fig. 3-91
(2) Turn the Top drive cover upside down and disconnect the wiring of the Develop release
sensor PCB ASSY.
(3) Release the Hook to remove the Develop release sensor PCB ASSY from the Top drive
cover.
Fig. 3-92
Taptite cup S M3x6 SR
Top drive ASSY
Top drive cover
Taptite cup S M3x6 SR
Hook
Top drive cover
Develop release sensor PCB ASSY
3a
3b
3c
