(4) Remove the Gear Z63-30 from the Top drive ASSY.

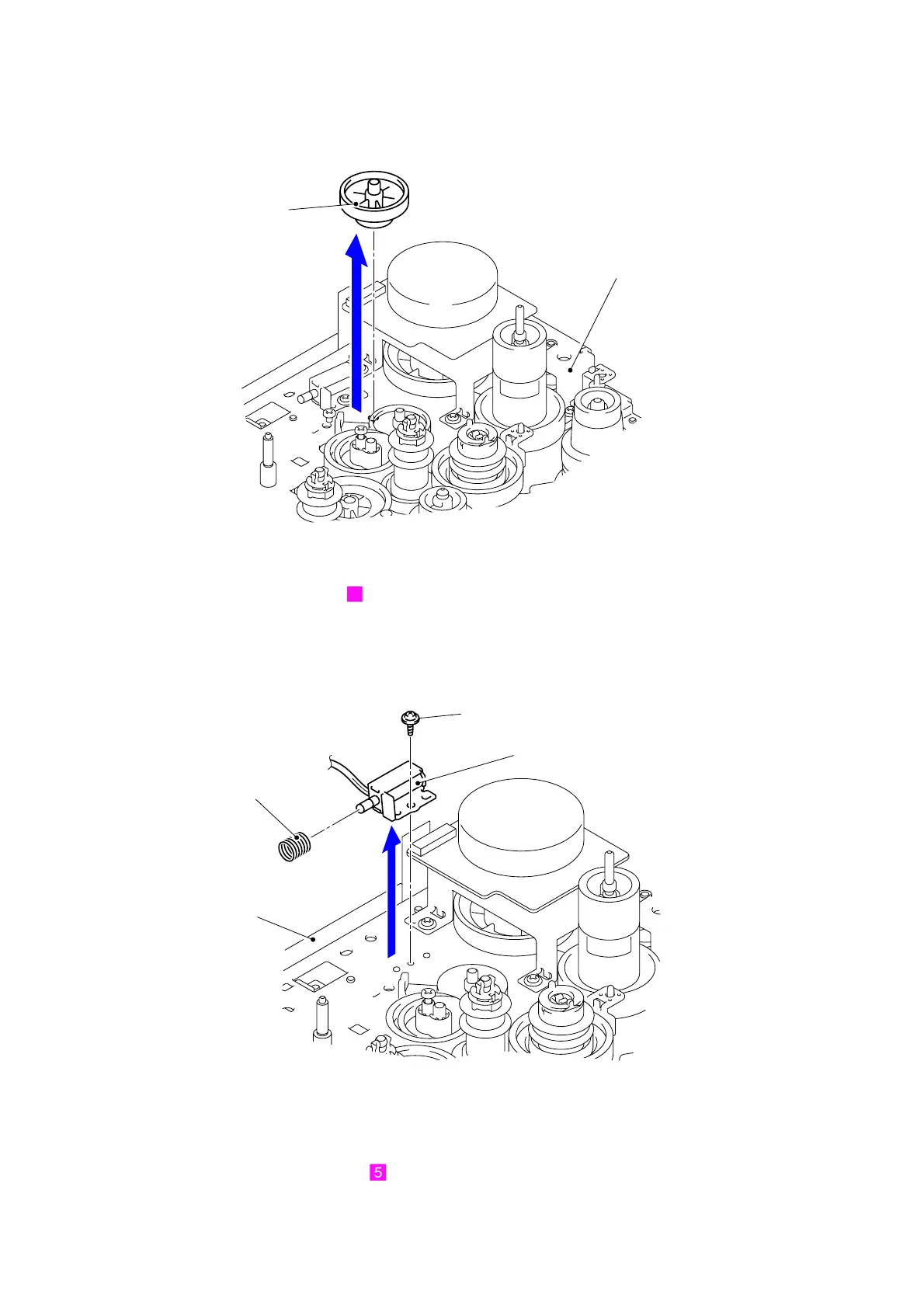

Fig. 3-93
Gear position: Refer to “ Top drive ASSY.”
(5) Remove the Taptite cup S M3x6 SR screw to remove the Mono solenoid ASSY and Mono
solenoid spring from the Top drive ASSY.
Fig. 3-94
Harness routing: Refer to “ Top Drive ASSY”
Gear Z63-30
Top drive ASSY
Taptite cup S M3x6 SR
Top drive ASSY
Mono solenoid ASSY
Mono solenoid spring
