10.7 T2 Solenoid ASSY
(1) Remove the Taptite cup S M3x6 SR screw to remove the T2 solenoid holder ASSY from the
T2 frame L unit.

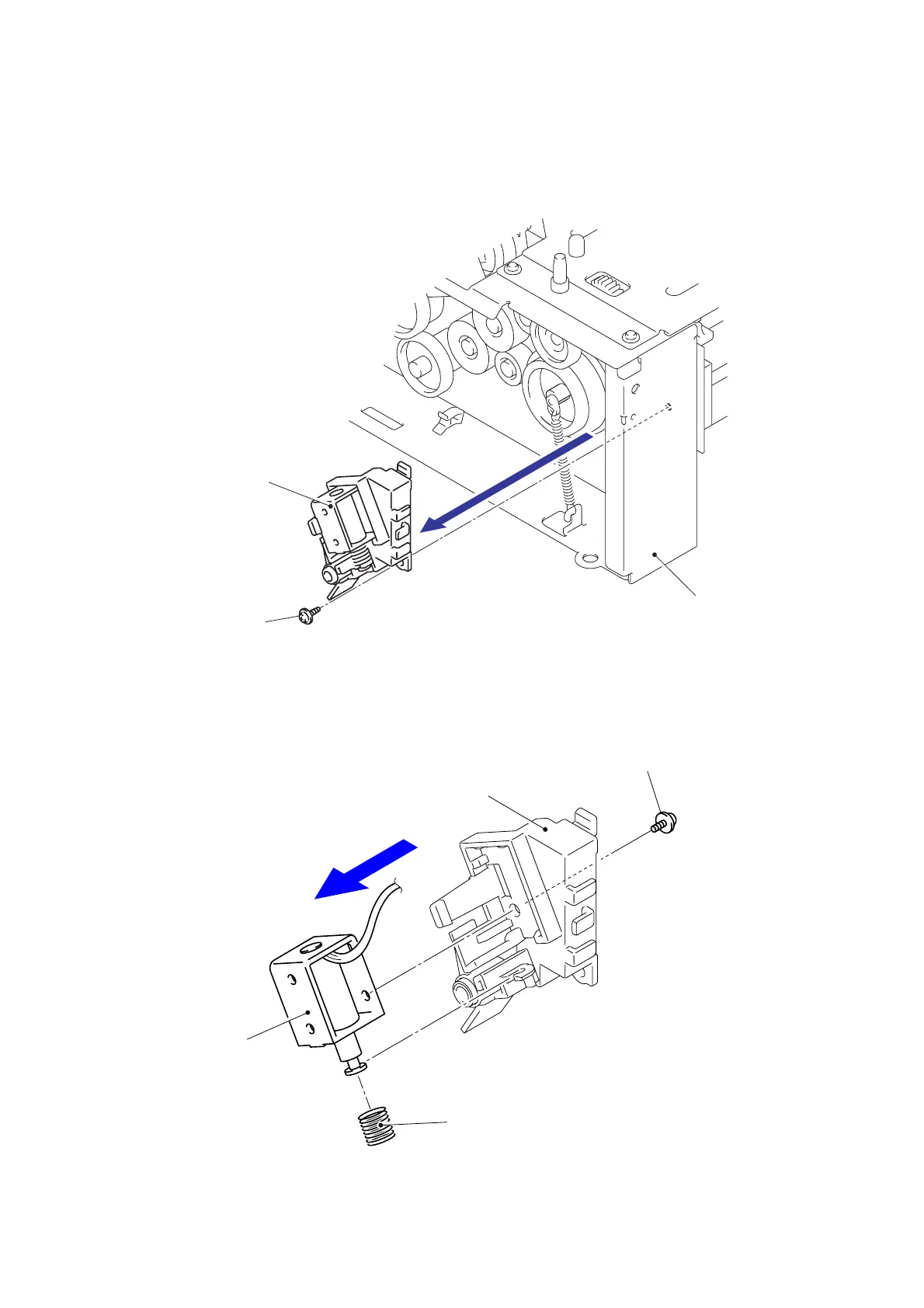

Fig. 3-190
(2) Remove the Screw flanged M3x3.5 screw to remove the T2 solenoid ASSY and
T2 solenoid spring MP from the T2 solenoid holder.
Fig. 3-191
Taptite cup S M3x6 SR
T2 frame L unit
T2 solenoid holder ASSY
Screw flanged M3x3.5
T2 solenoid holder
T2 solenoid ASSY
T2 solenoid spring MP
