Brother HL-4150CDN - Paper Eject ASSY

3-86
Confidential
9.34 Paper Eject ASSY
(1) Disconnect the wiring of the harness from the High-voltage power supply PCB ASSY.
(2) Remove the five Taptite cup S M3x6 SR screws to remove the Paper eject ASSY from the
Base frame unit.

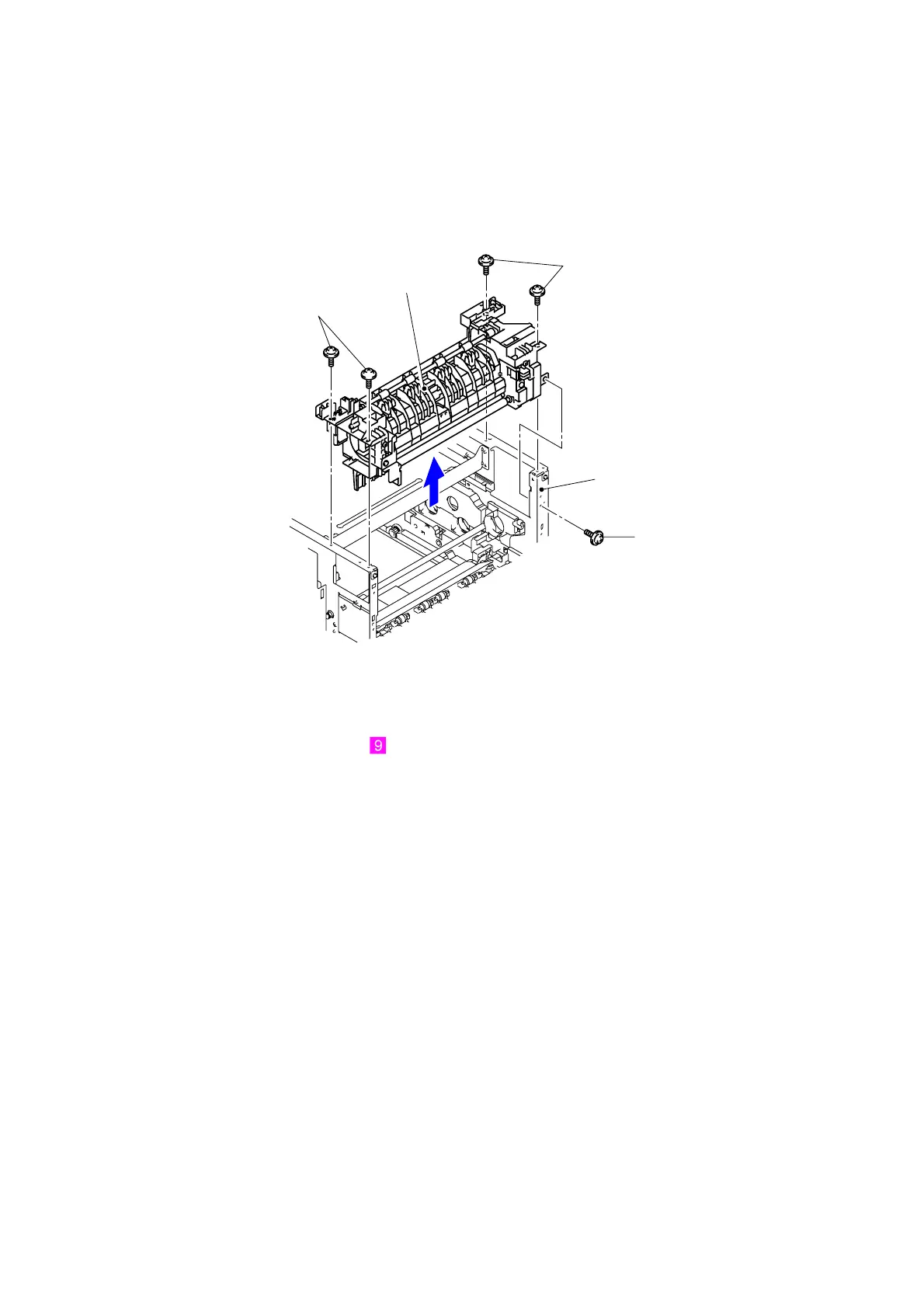

Fig. 3-106
Harness routing: Refer to “ Paper Eject ASSY”
Taptite cup S M3x6 SR
Base frame unit
Taptite cup S M3x6 SR
Taptite cup S M3x6 SR
<Back side>
Paper eject ASSY
