9.30 PF Plate ASSY/T1 Solenoid ASSY
(1) Remove the three Taptite bind B M4x12 screws and Taptite cup S M3x6 SR screw.
Release the FG wire under bar to remove the PF plate ASSY from the PF cleaner drive
ASSY.

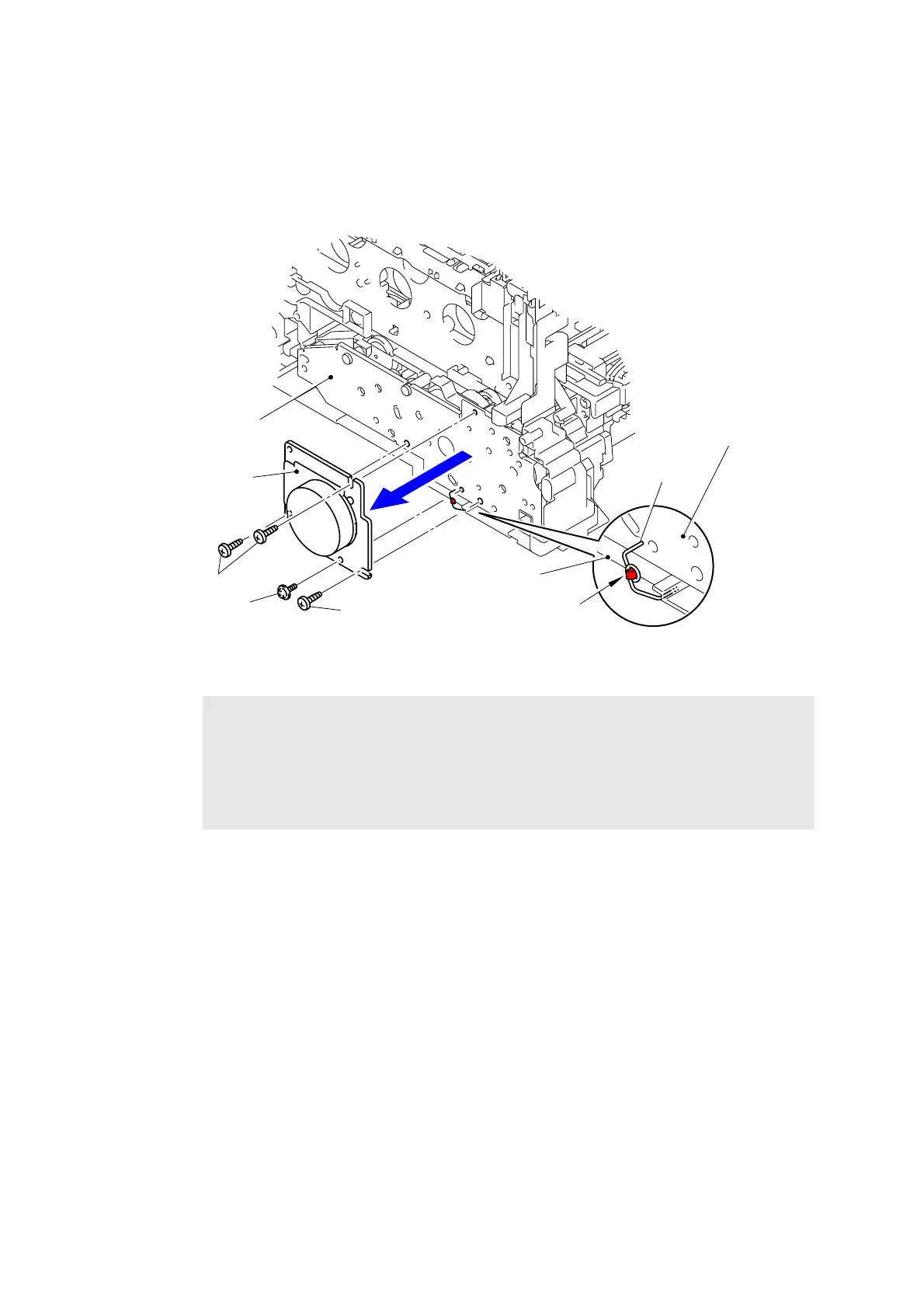

Fig. 3-96
Note:
- When removing and installing the PF plate ASSY, be sure to hang the FG wire under
bar on the Hook of the Base frame unit as shown in the figure before removing and
installing the PF plate ASSY.
- Be sure to install the FG wire under bar in the PF plate ASSY when installing the
PF plate ASSY.
Taptite bind B M4x12
Taptite bind B M4x12
Taptite cup S M3x6 SR
PF cleaner drive ASSY
PF plate ASSY
<Left side>
FG wire
PF cleaner drive ASSY
Hook
Base frame unit
under bar
