9.29 Fuser Develop Motor ASSY
(1) Remove the four Taptite cup S M3x6 SR screws to remove the Fuser Develop Motor
ASSY from the Top drive ASSY.

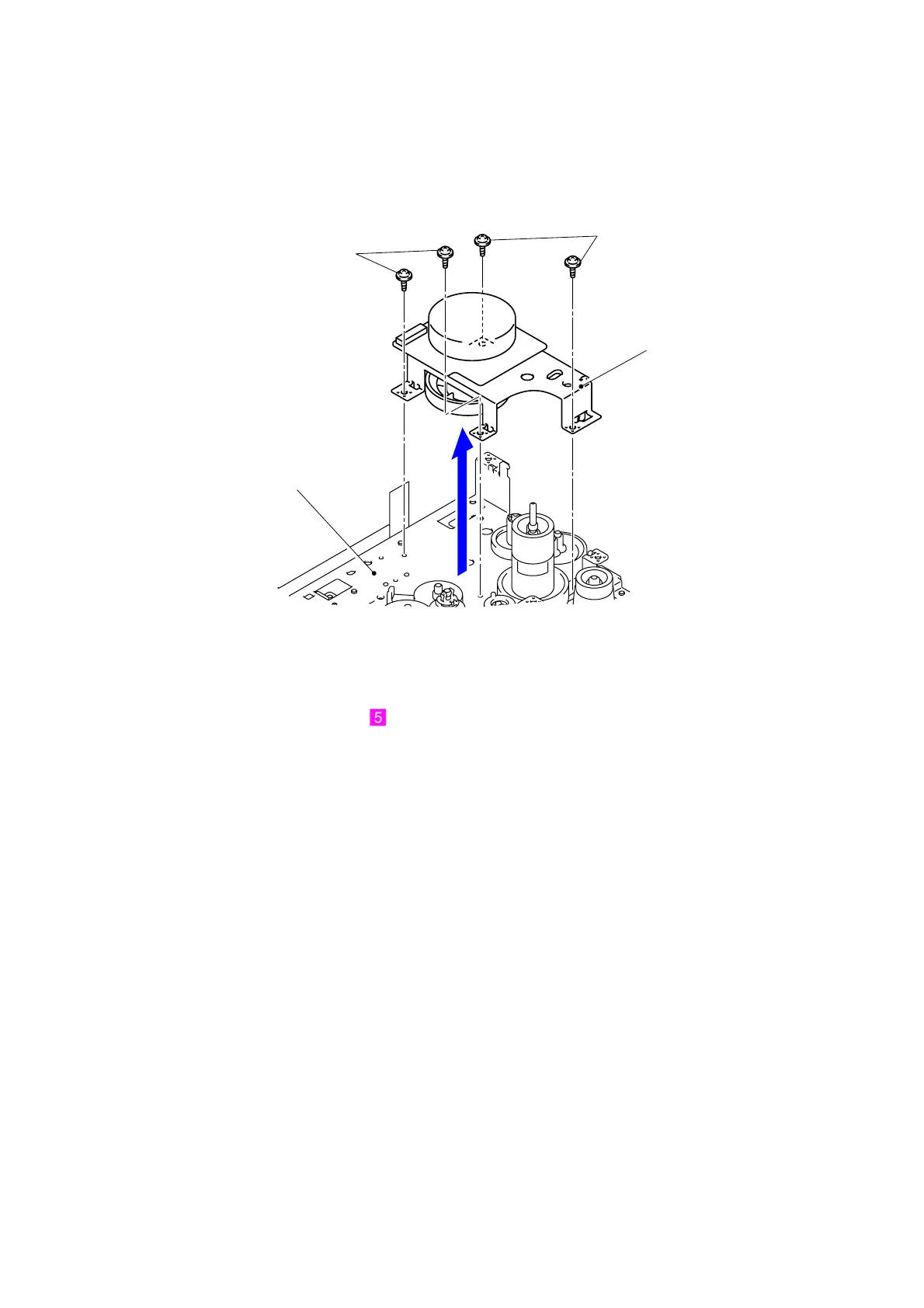

Fig. 3-95
Harness routing: Refer to “ Top Drive ASSY”
Taptite cup S M3x6 SR
Top drive ASSY
Taptite cup S M3x6 SR
Fuser Develop Motor ASSY
