Brother HL-4150CDN - Back Cover Sensor ASSY

3-90
Confidential
9.37 Back Cover Sensor ASSY
(1) Release the two Hooks to remove the Back cover sensor ASSY from the Paper eject
ASSY.

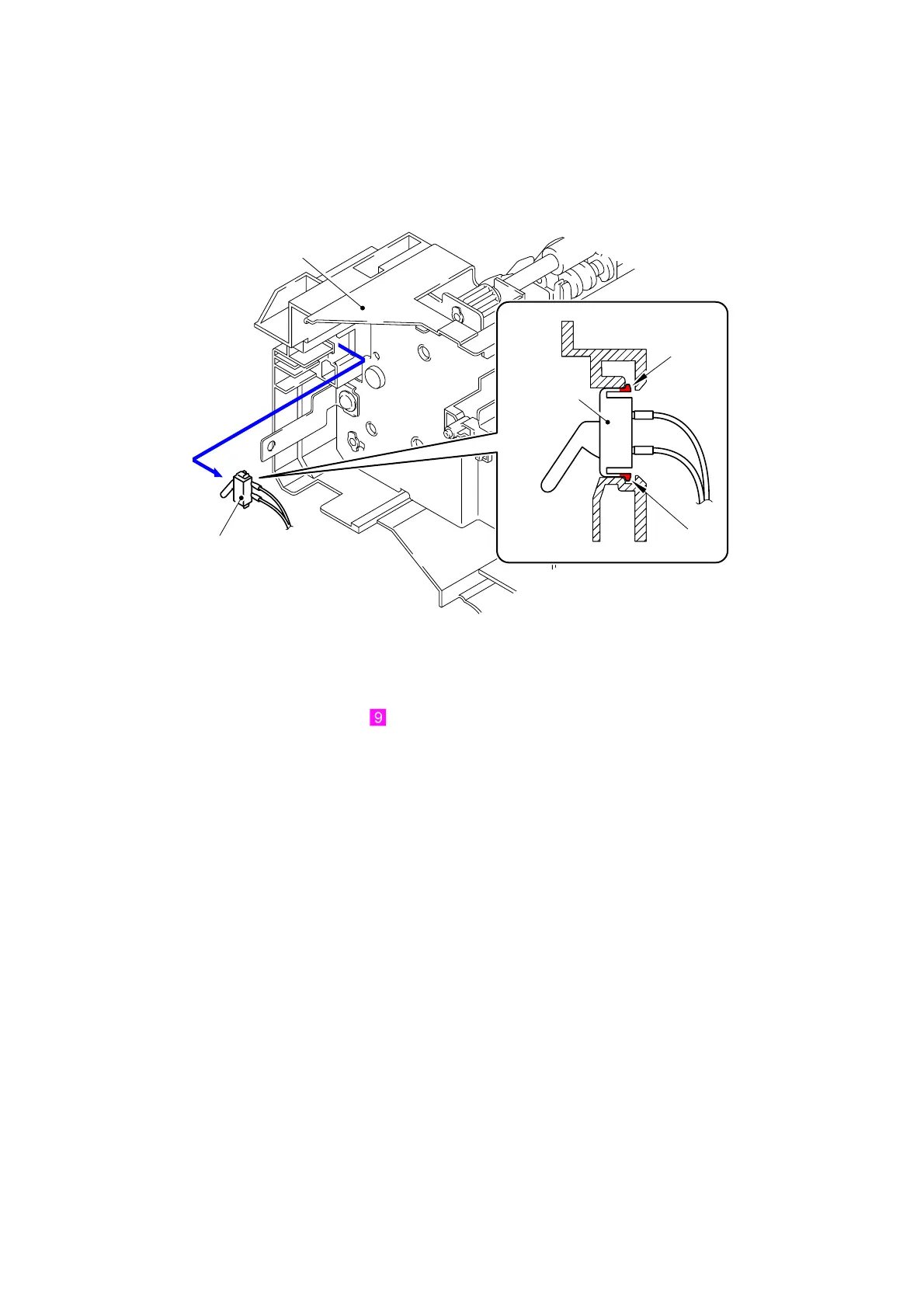

Fig. 3-111
Harness routing: Refer to “ Paper Eject ASSY”
Hook
Back cover sensor ASSY
Back cover
sensor ASSY
Paper eject ASSY
Hook
