Brother HL-4150CDN - Fuser Unit

3-30
Confidential
9.5 Fuser Unit

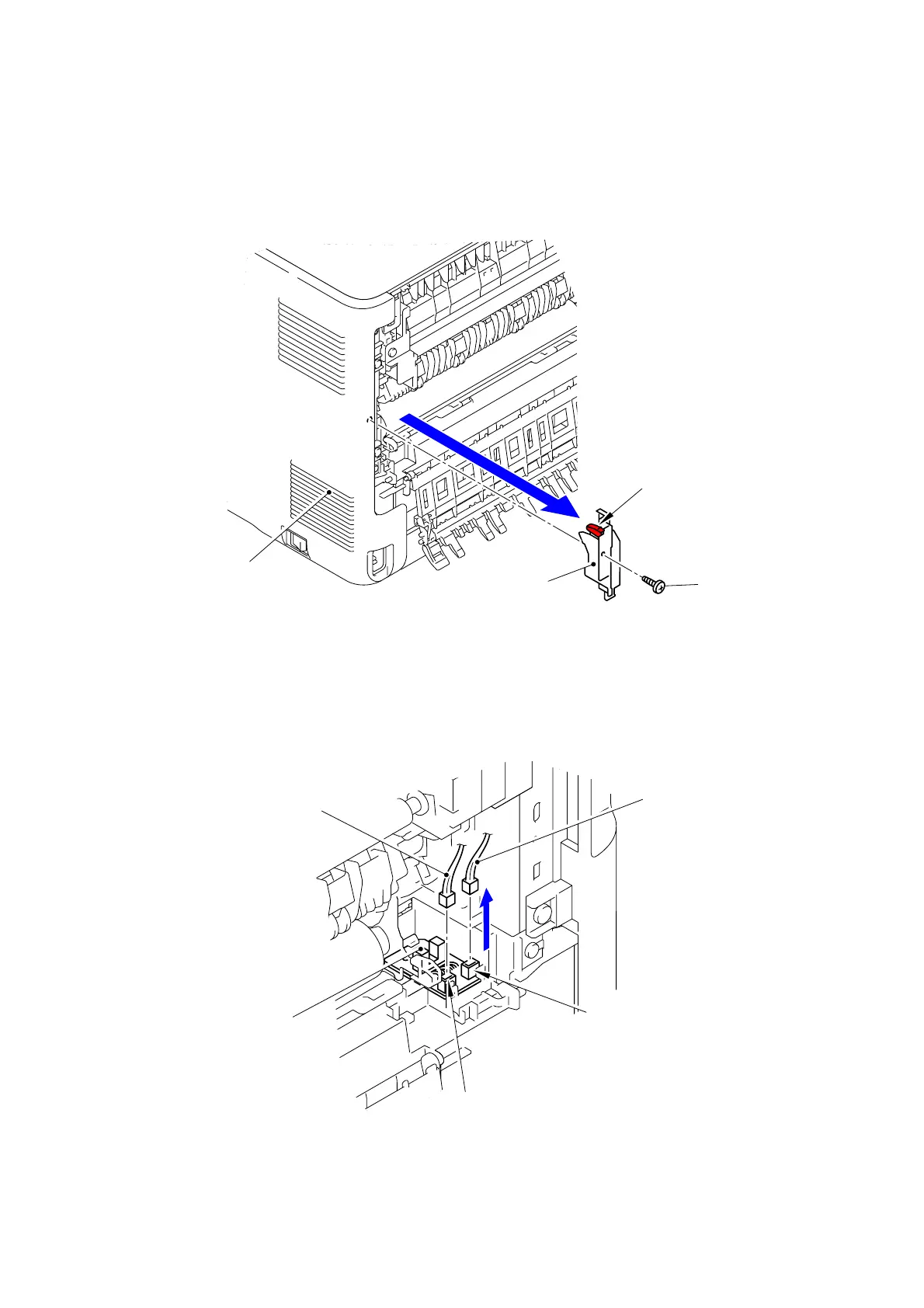

(1) Remove the Taptite bind S M3x8 screw from the Fuser cover R.
(2) Release the Hook to remove the Fuser cover R from the Main body.
Fig. 3-13
(3) Disconnect the two Connectors (CN1, CN2) from the Paper eject sensor PCB ASSY.
Fig. 3-14
Main body
Taptite bind S
Fuser cover R
Hook
M3x8
<Back side>
CN1
CN2
Connector
Connector
Paper eject sensor PCB ASSY
