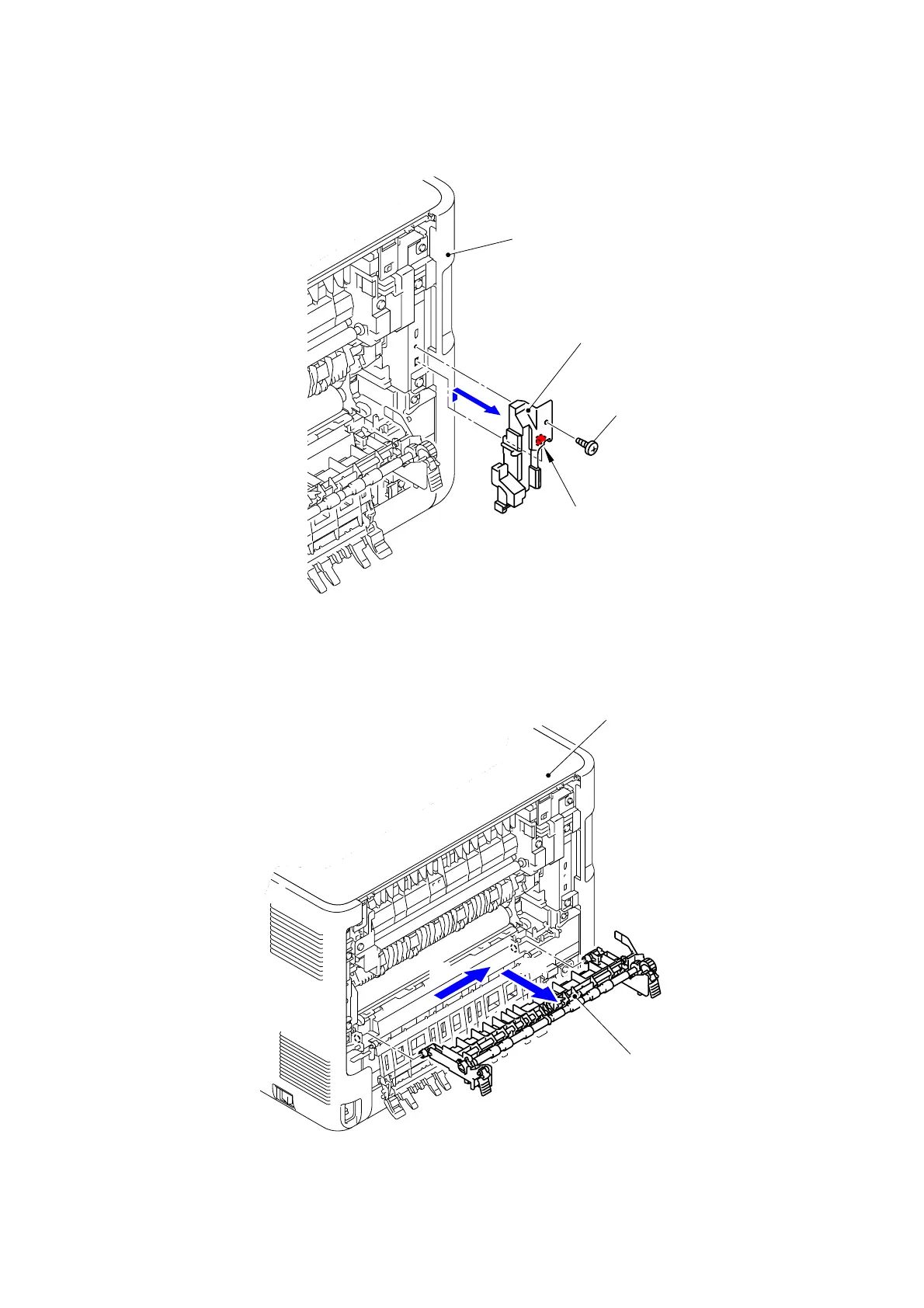

(3) Remove the Taptite bind S M3x8 screw from the Fuser cover L.
(4) Release the Hook to remove the Fuser cover L from the Main body.
Fig. 3-11
(5) Slide the Fuser cover in the direction of the arrow 5a to remove it to the front.
Fig. 3-12
Main body
Taptite bind S M3x8
Hook
Fuser cover L
<Back side>
Main body
<Back side>
5a
5b
Fuser cover
