Brother HL-4150CDN - Top Drive Assy

3-13
Confidential
5 Top Drive ASSY
Front
Front
“a”
“b”
CN22
“c”
Hook
Hook
Hook
Hook
Hook
“d”
“e”
Hook
Hook

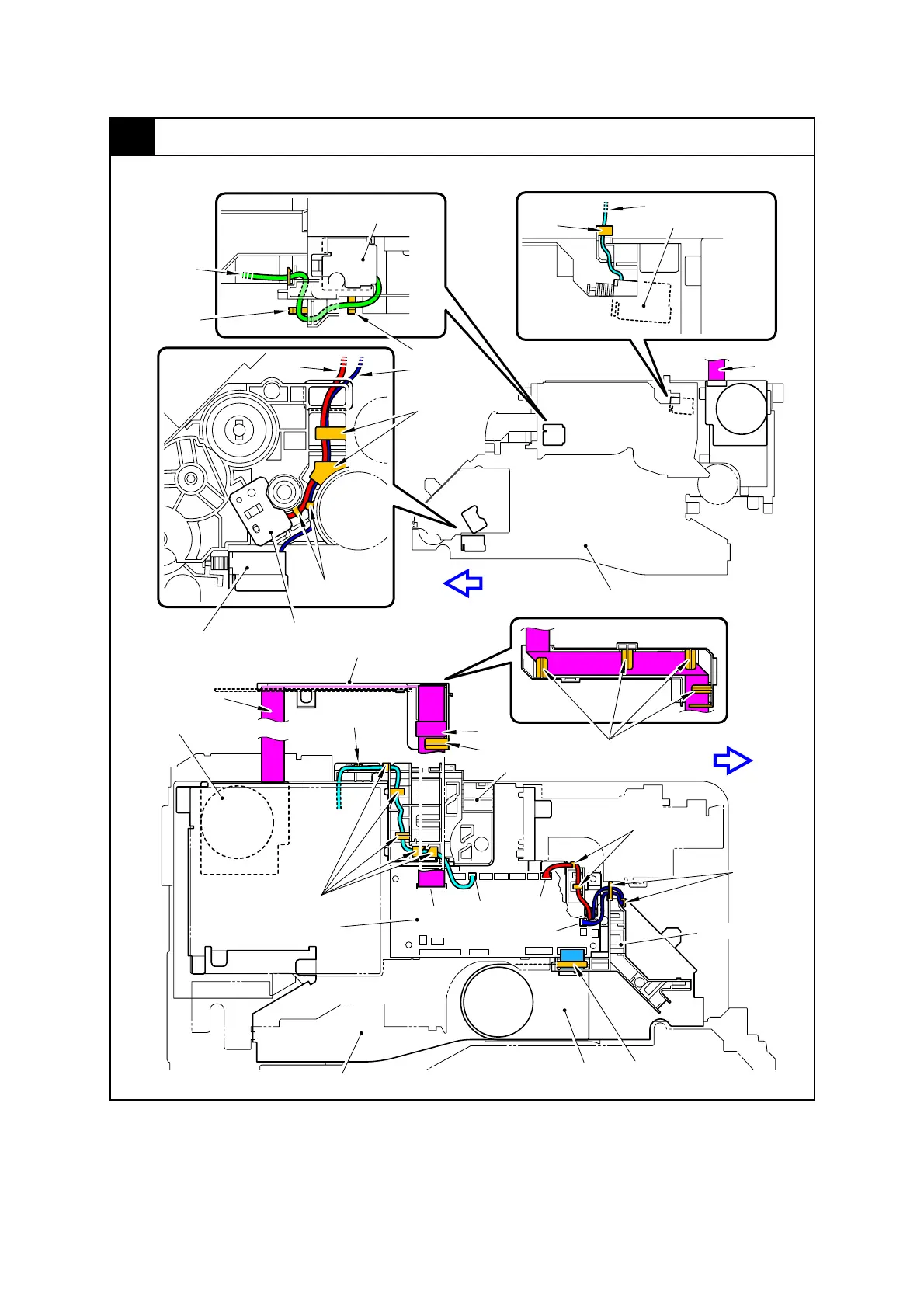

Top Drive ASSY (back side)
Hook
CN15
CN17
CN11
Top drive ASSY
Hook
Hook
Hook
Fuser develop
“e”
motor ASSY
Engine PCB ASSY
Upper cable rack
Develop release
sensor PCB ASSY
PF line holder
Registration solenoid ASSY
Develop FFC holder
Ferrite core
Hook
Mono solenoid ASSY
Drum position sensor PCB ASSY
Drum drive motor
