3-112
Confidential
(15) Disconnect the wiring of the MP paper empty/registration front sensor PCB ASSY.
(16) Remove the Taptite bind B M3x8 screw, and then remove the MP paper empty/
registration front sensor PCB ASSY from the MP upper cover ASSY.

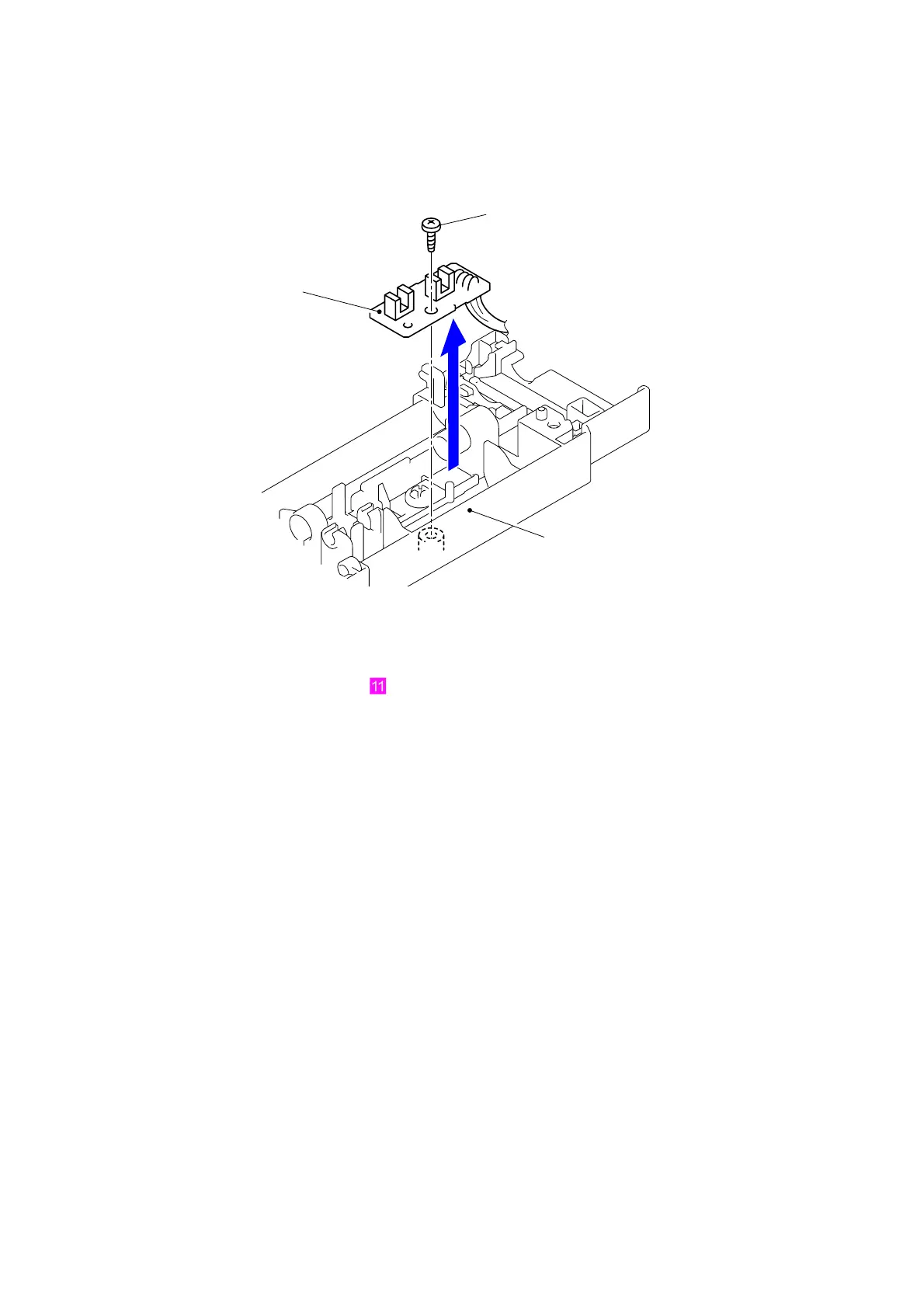

Fig. 3-148
Harness routing: Refer to “ MP Paper Empty/Registration Front Sensor PCB ASSY”
Taptite bind B M3x8
MP upper cover ASSY
MP paper empty/registration
front sensor PCB ASSY
To Next Page
