7-15
Confidential

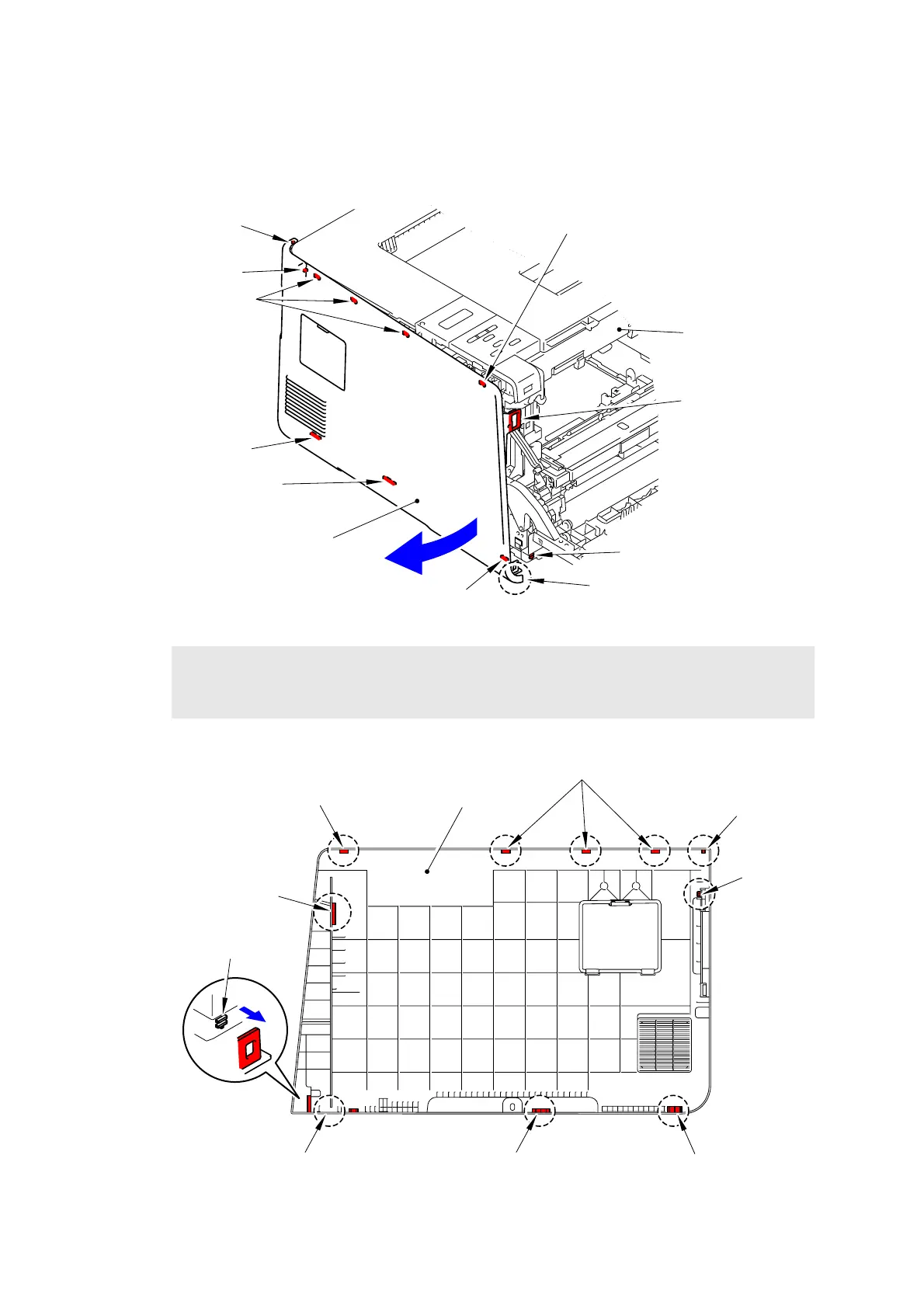

(10) Release the Hooks 1 and 2 at the same time, and then release the Hooks 3 to 6 in
numerical order. Hold the "A" section and lift the cover to release the Hook 7.
Lower the cover, and then lift it again and release the Hooks 8 and 9 to remove the Side
cover L from the Main body.
Fig. 7-24
* Inside of Side cover L
Fig. 7-25
Assembling Note:
When assembling the Side Cover L, make sure to push “A” to the rear side of the main body
first, and then tighten the screws.
<Front>
Side cover L
Hook 8
Hook 6
Hook 7
Hook 5
Hook 2
Hook 4
Main body
Hook 1
Hook 9
Hook 3
“A”
<Front>
<Back>
Side cover L
Hook 1
Hook 5
Hook 8
Hook 6
Hook 4
Hook 3
Hook 2
Hook 7
Hook 9
To Next Page
