(5) Turn the MP separation pad ASSY upright to remove it from the MP unit.

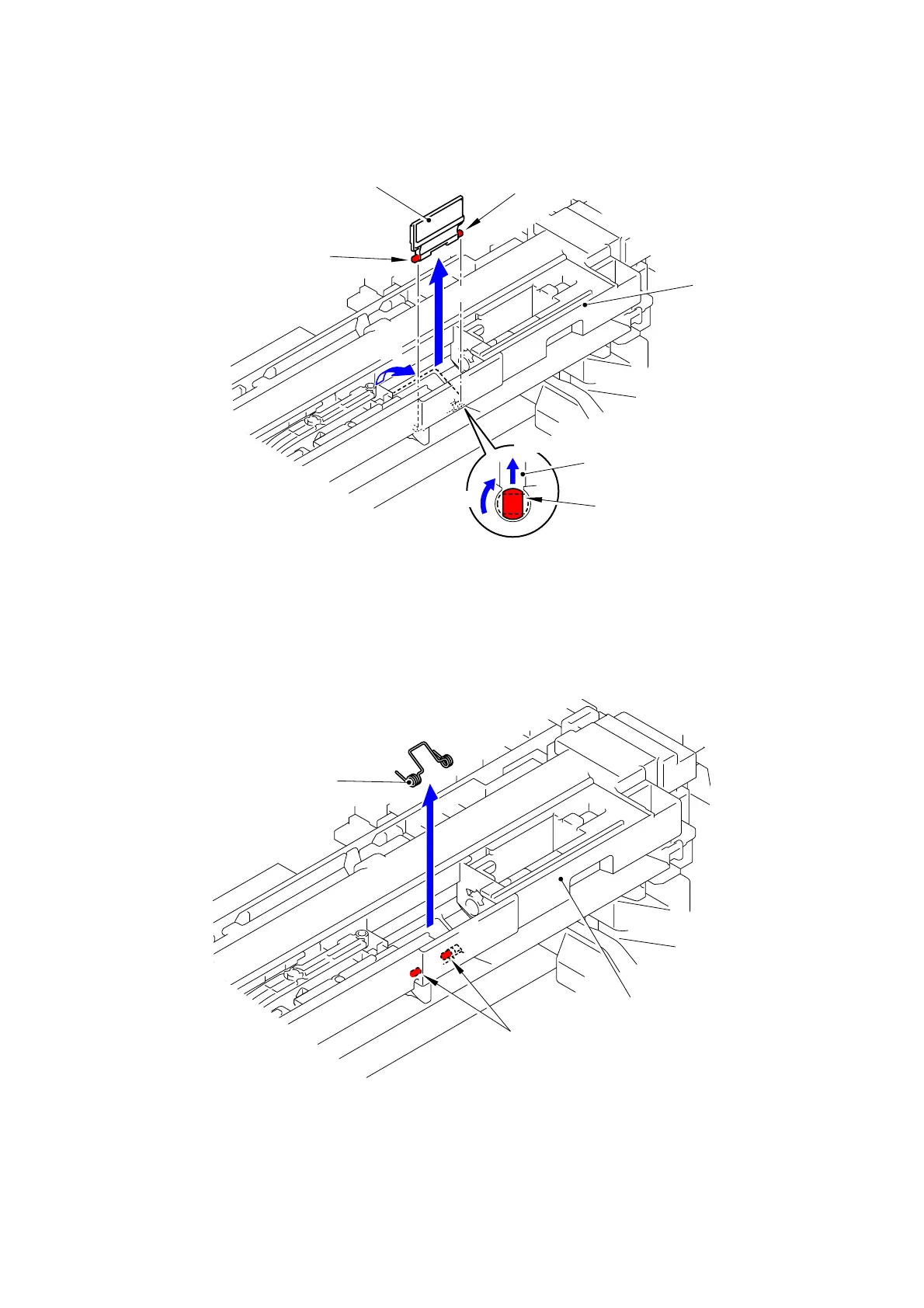

Fig. 7-54
(6) Remove the MP separation pad spring from the two Pins of MP unit.
Fig. 7-55
(7) After replacing the MP paper feeding kit, reset the counter. (Refer to “2.3 Parts Life Reset
Function” in Chapter 5.)
MP sepration pad ASSY
Pin
Pin
MP unit
MP sepration pad ASSY
Pin
5a
5b
5a
5b
MP separation pad spring
Pin
MP unit
