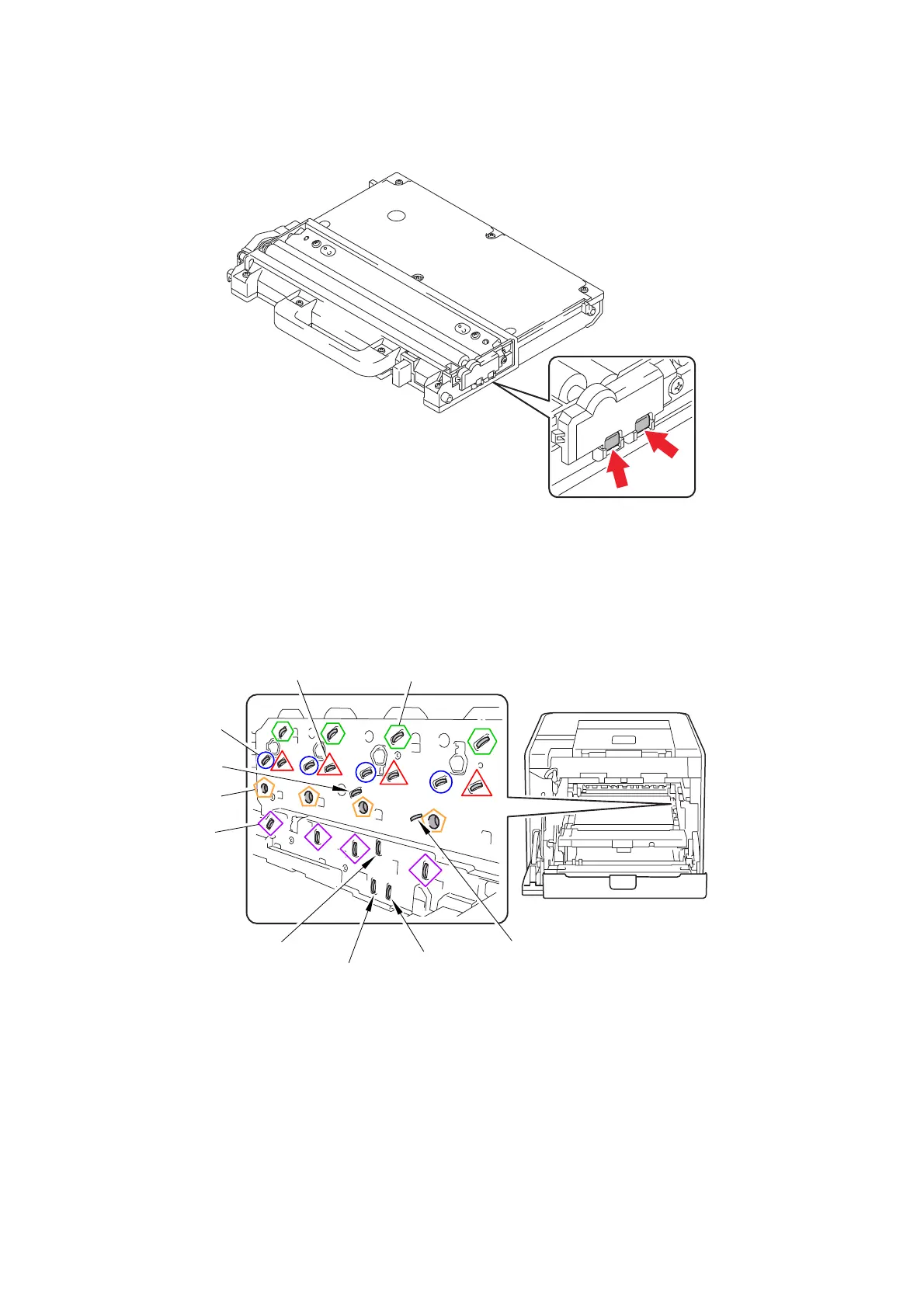

■ Electrodes location of waste toner box
Fig. 2-8
■ Electrodes location of main body
Fig. 2-9
<How to clean the electrodes>
Turn off the power switch. Unplug the printer from the AC power outlet, and leave the printer
for a few minutes. Then, wipe the electrodes above carefully with a dry lint-free cloth. Be
careful not to change the shapes of the electrodes.
Developer roller
Cleaning roller
Belt transfer roller
Belt cleaning roller
Waste toner cleaner shaft
Waste toner cleaner roller
Paper powder cleaner
Charging (Corona wire)
Grid
Erase lamp lens
