3.4 Paper Feeding Problems
Problems related to paper feeding are end user recoverable if following the User Check items.
If the same problem occurs again, follow each procedure in the order of the number described
in the Step column in the tables below.
3.4.1 No feeding
■ Paper fails to be supplied from the paper tray 1 (Error code 27, etc)
<User Check>
- Check if the Tray Use setting is fixed to other tray.
- Check if the paper is loaded into the paper tray 1 correctly.
- Check if the loaded paper is smaller than the specified size.
- Turn back the paper loaded in the paper tray 1 or change the orientation of the paper by 180°.
- Adjust the paper guide in accordance with the paper size.
- Check if the thickness of the paper is 60 to 105 g/m
2
.

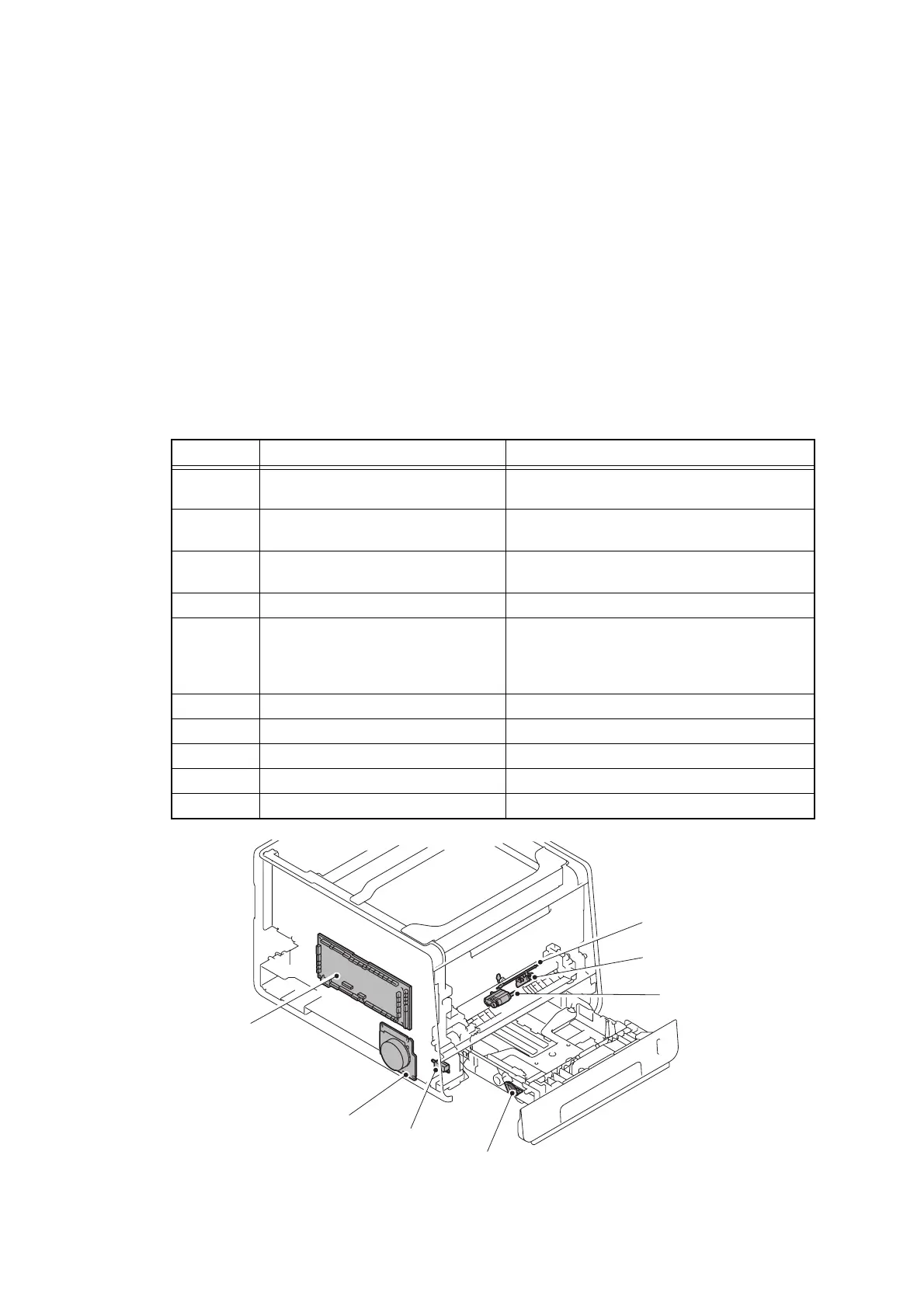

Fig. 2-10
Step Cause Remedy
1 T1 paper edge actuator
malfunction
Re-assemble the T1 paper edge actuator.
2 Harness connection failure of
PF drive motor
Check the harness connection of the PF
drive motor and reconnect it.
3 Installation failure of roller holder
ASSY
Check the installation of the roller holder
ASSY and reinstall it correctly.
4 T1 paper pick-up roller worn out Replace the paper feeding kit1.
5 T1 paper edge sensor failure Check the sensor performance following
the procedure described in “Function code
32”. If any problem occurs, replace the T1
paper edge sensor PCB ASSY.
6 Plate gear damaged Replace the paper tray 1.
7 T1 solenoid ASSY failure Replace the T1 solenoid ASSY.
8PF drive motor failure Replace the PF plate ASSY.
9 Engine PCB failure Replace the engine PCB ASSY.
10 Main PCB failure Replace the main PCB ASSY.
Registration front actuator
T1 registration front/rear
Roller holder ASSY
Plate gear
T1 solenoid ASSY
PF drive motor
Engine PCB ASSY
sensor PCB ASSY
