Brother HL-4570CDW - Disassembly Procedure (Lt-300 Cl); T2 Paper Tray Unit

3-129
Confidential
10. DISASSEMBLY PROCEDURE (LT-300CL)
10.1 T2 Paper Tray Unit

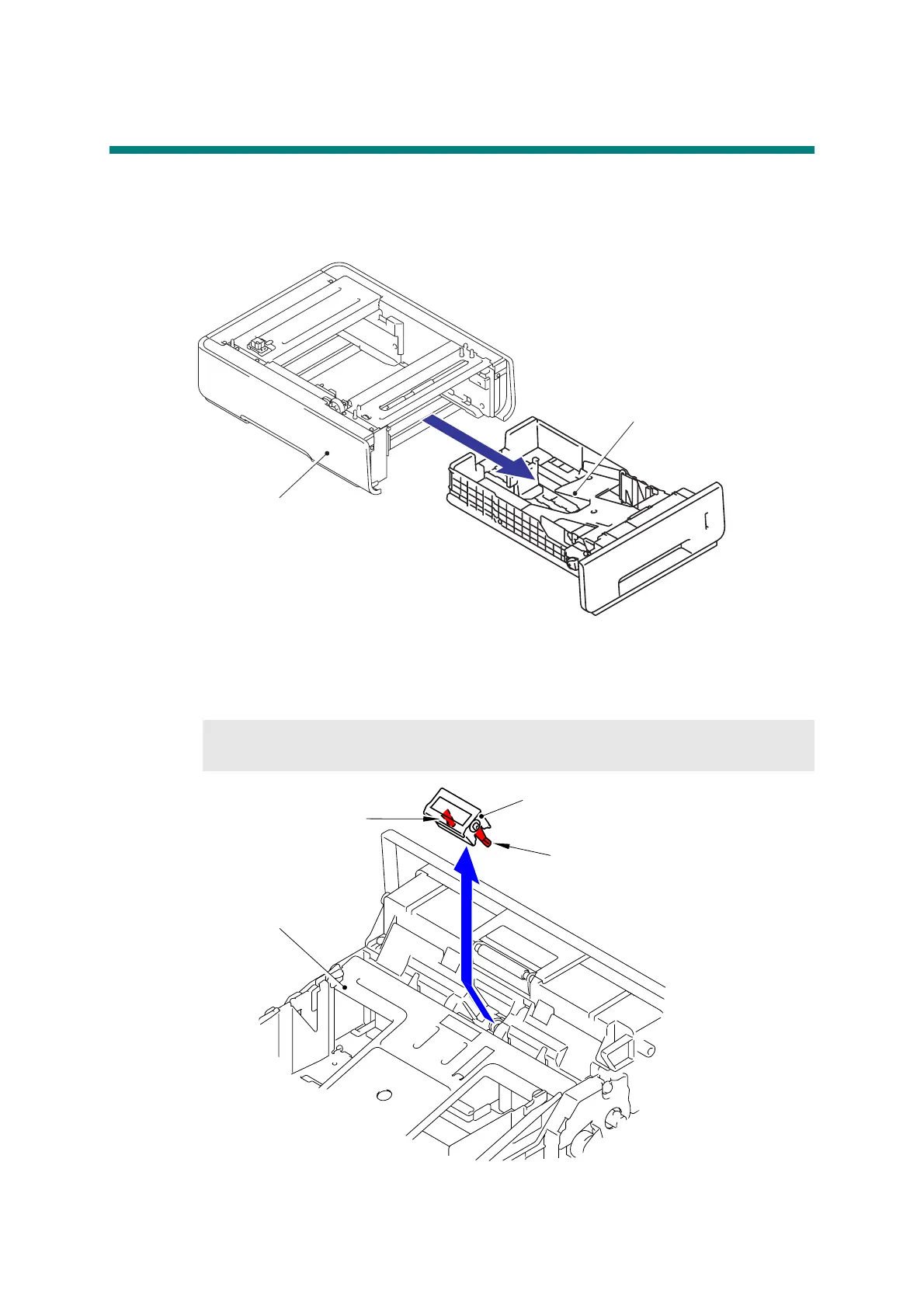

(1) Take out the T2 paper tray unit from the main body.
Fig. 3-176
(2) Release the two Hooks of the T2 separation pad ASSY to remove them in the upward
direction.
Fig. 3-177
Note:
Be careful not to lose the T2 separation pad spring.
T2 paper tray unit
Main body
Hook
Hook
T2 separation pad ASSY
T2 paper tray unit
