Brother HL-4570CDW - Paper Feeding Kit2

7-28
Confidential

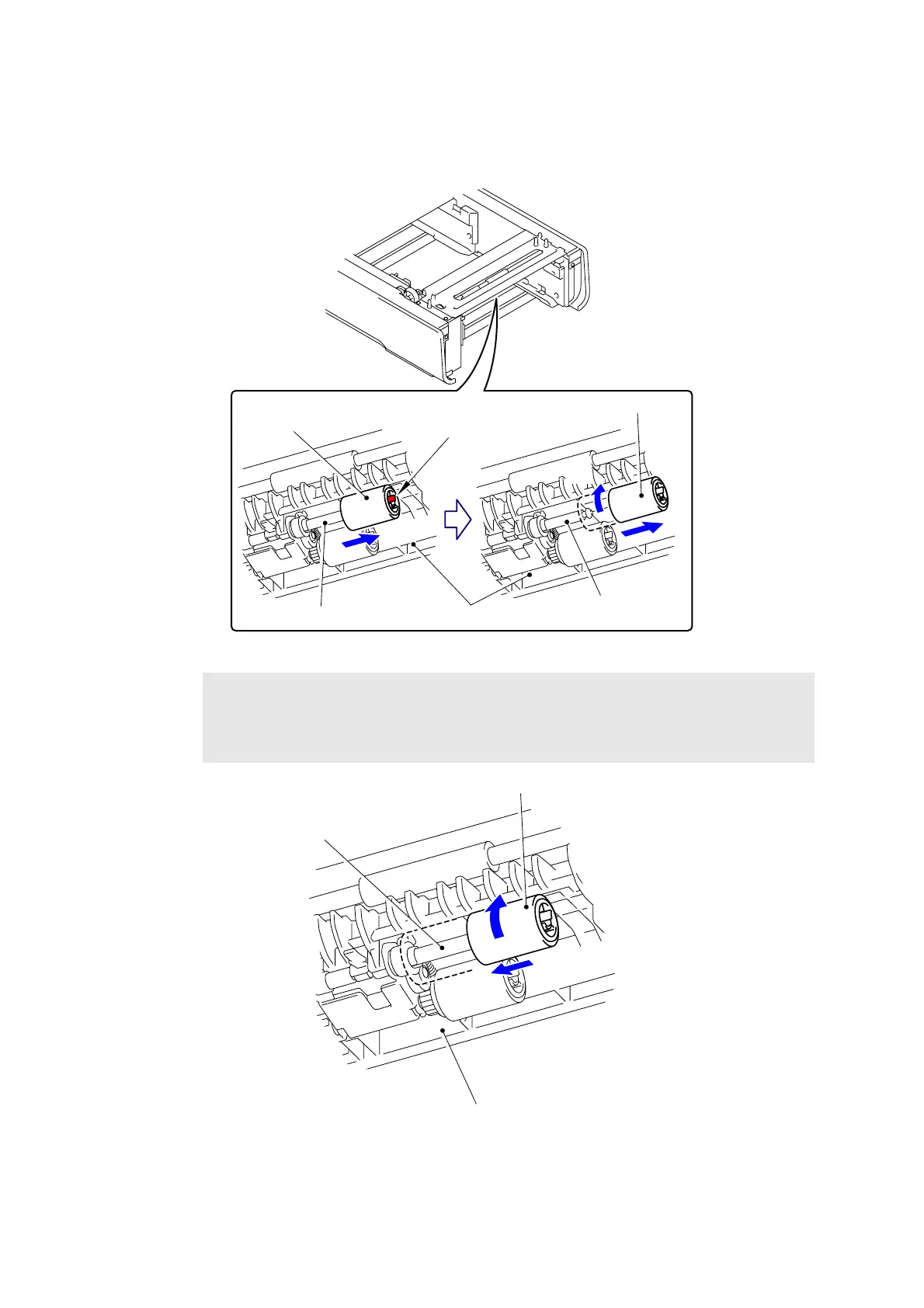

(3) Release the Hook and slide the T2 separation roller ASSY in the direction of the arrow 3.
(4) Remove the T2 separation roller ASSY in the direction of the arrow 4b as rotating it in the
direction of the arrow 4a.
Fig. 7-47
Fig. 7-48
Assembling Note:
When assembling the T2 separation roller ASSY, be sure to assemble it by sliding it in
the direction of the arrow b as rotating the T2 separation roller ASSY in the direction of
the arrow a.
Hook
T2 separation roller ASSY
T2 separation roller ASSY
T2 paper feed frame unit
T2 paper feed drive shaft
T2 paper feed drive shaft
3
4b
4a
a
b
T2 separation roller ASSY
T2 paper feed drive shaft
T2 paper feed frame unit
