9.51 Waste Toner Sensor

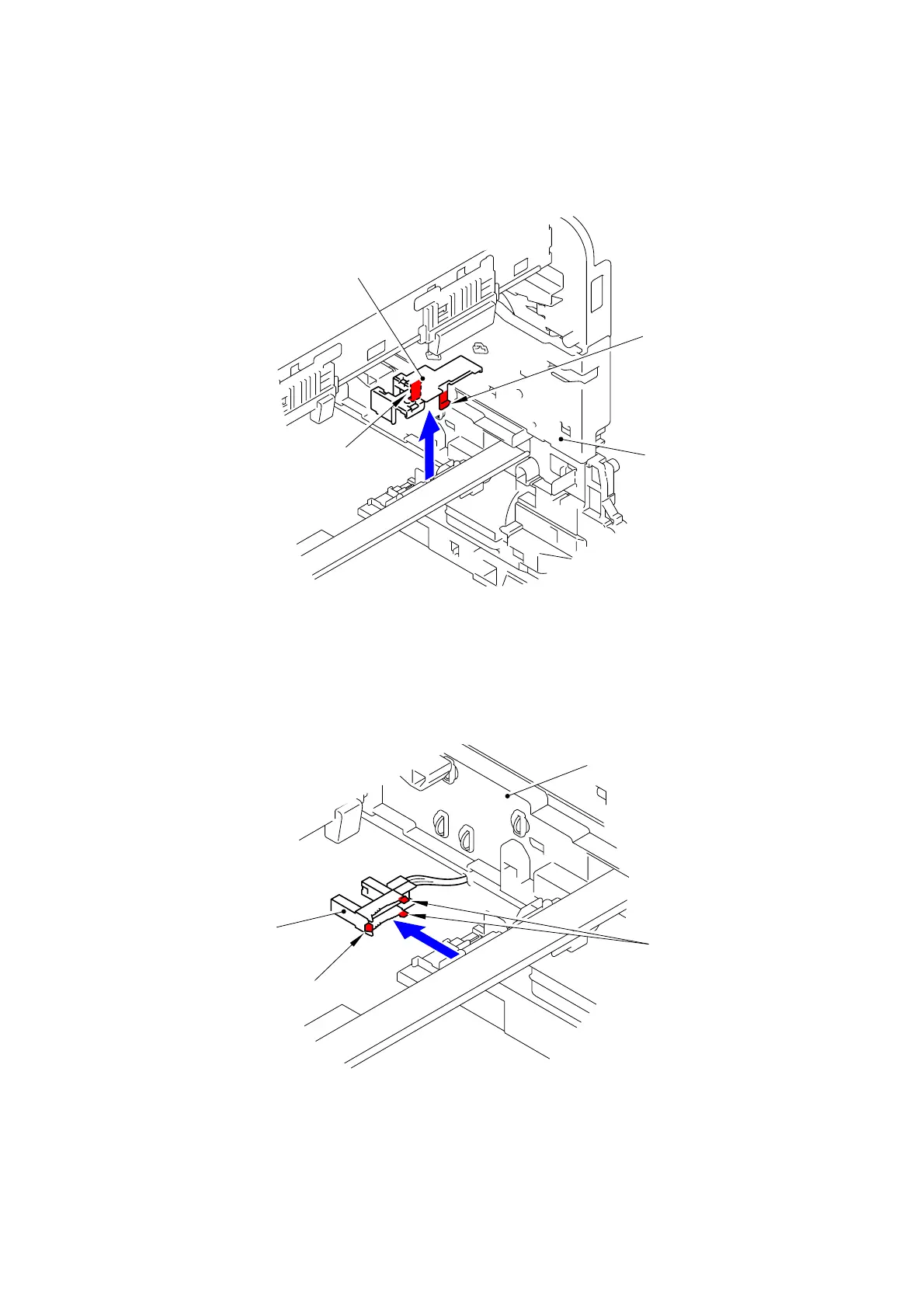

(1) Release the two Hooks to remove the Waste toner sensor cover from the Base frame unit.
Fig. 3-170
(2) Release the three Hooks to remove the Waste toner sensor from the Base frame unit.
Fig. 3-171
Hook
Base frame unit
Waste toner sensor cover
<Front>
Hook
Waste toner sensor
Base frame unit
Hook
Hook
