9.36 Paper Eject Motor
(1) Remove the two Taptite bind S M3x6 screws to remove the Paper eject motor from the
Paper eject ASSY.

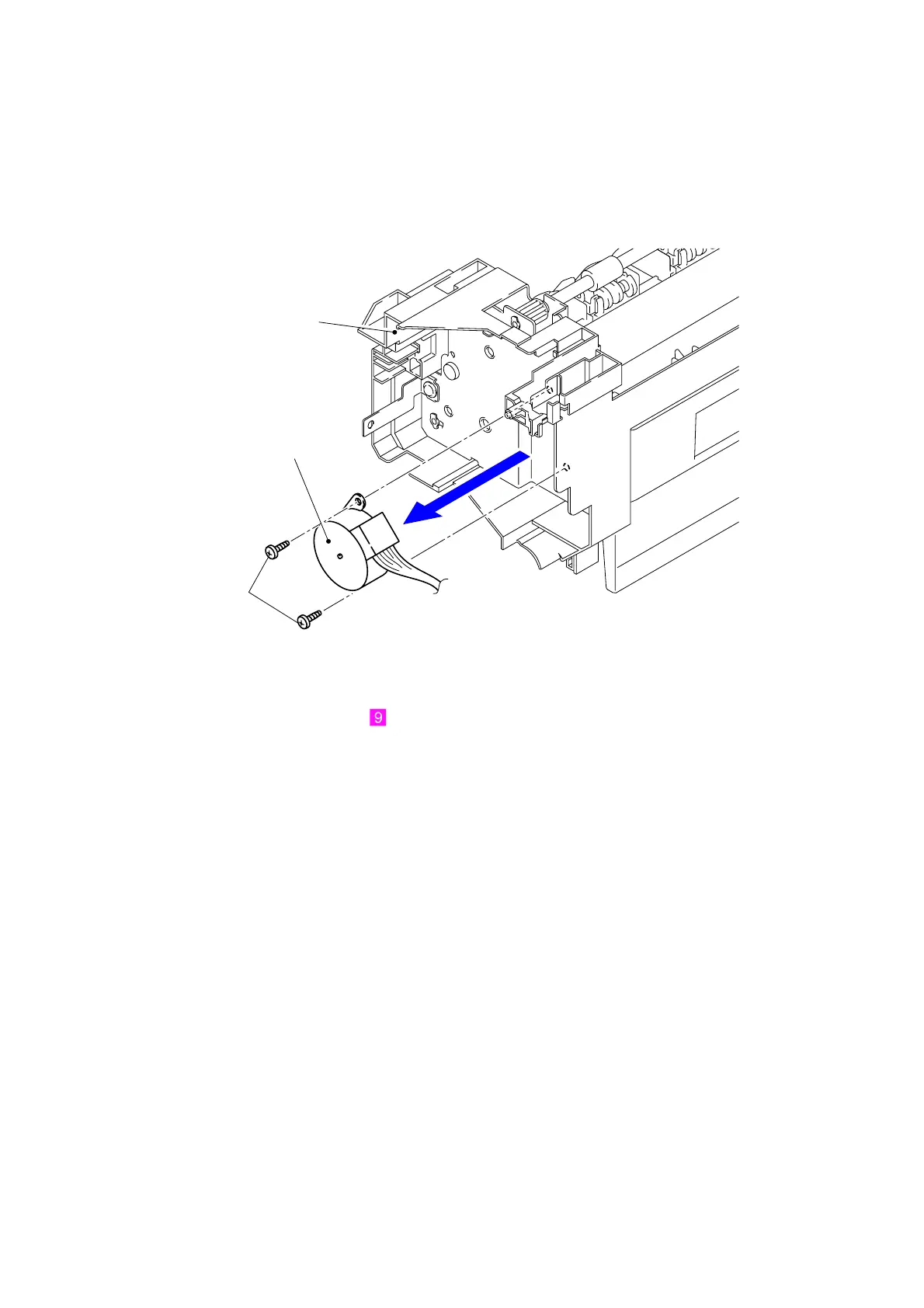

Fig. 3-110
Harness routing: Refer to “ Paper Eject ASSY”
Taptite bind S M3x6
Paper eject ASSY
Paper eject motor
