9.50 High-voltage Power Supply PCB ASSY

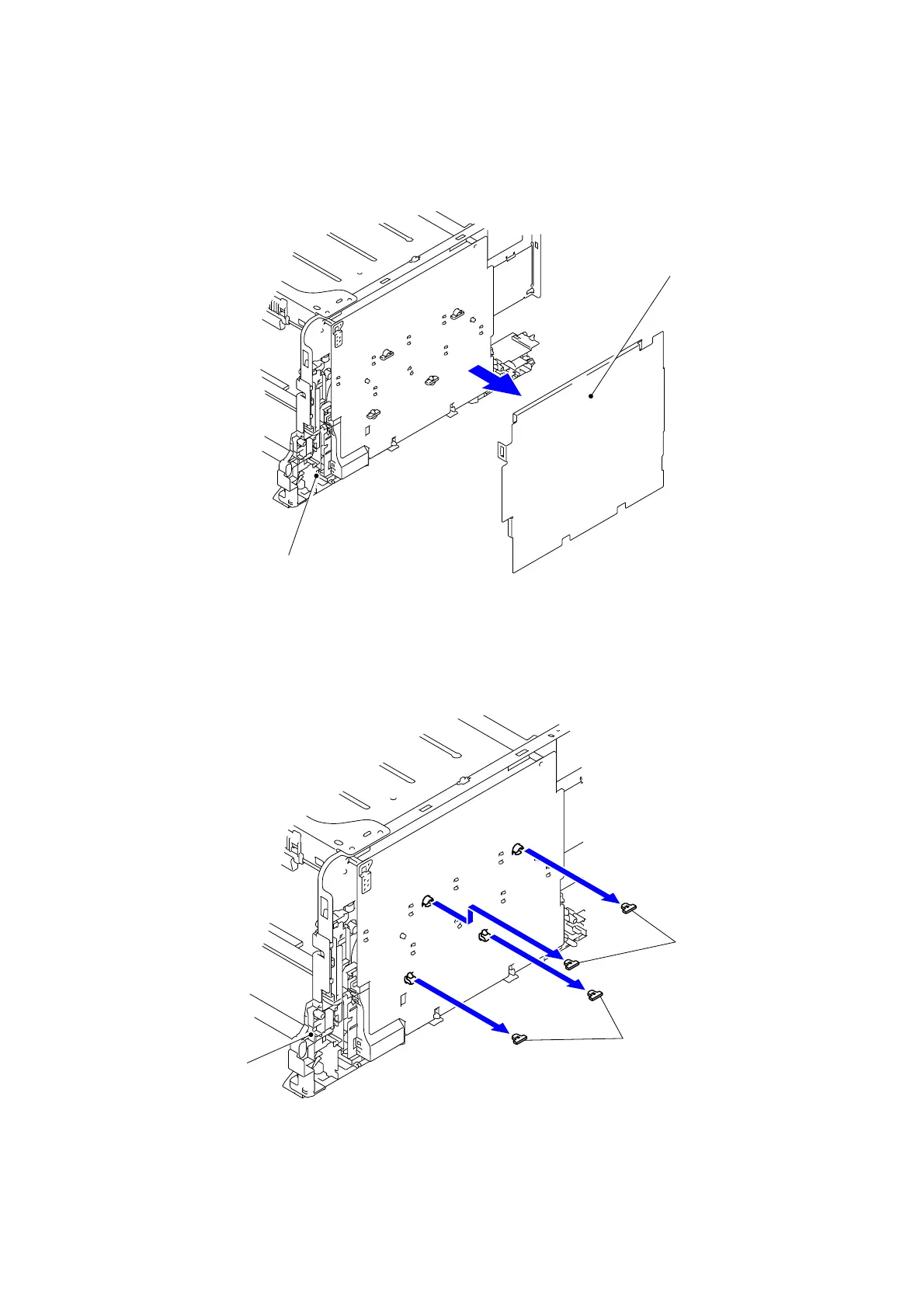

(1) Remove the High-voltage power supply protect film from the Base frame unit.
Fig. 3-164
(2) Remove the four Spacers from the Base frame unit.
Fig. 3-165
High-voltage power supply protect film
Base frame unit
<Right side>
<Right side>
Base frame unit
Spacer
Spacer
