9.27 Registration Solenoid ASSY
(1) Disconnect the wiring of the Registration solenoid ASSY.
(2) Remove the Taptite cup S M3x6 SR screw to remove the Registration solenoid ASSY and
Registration solenoid spring from the Top drive ASSY.

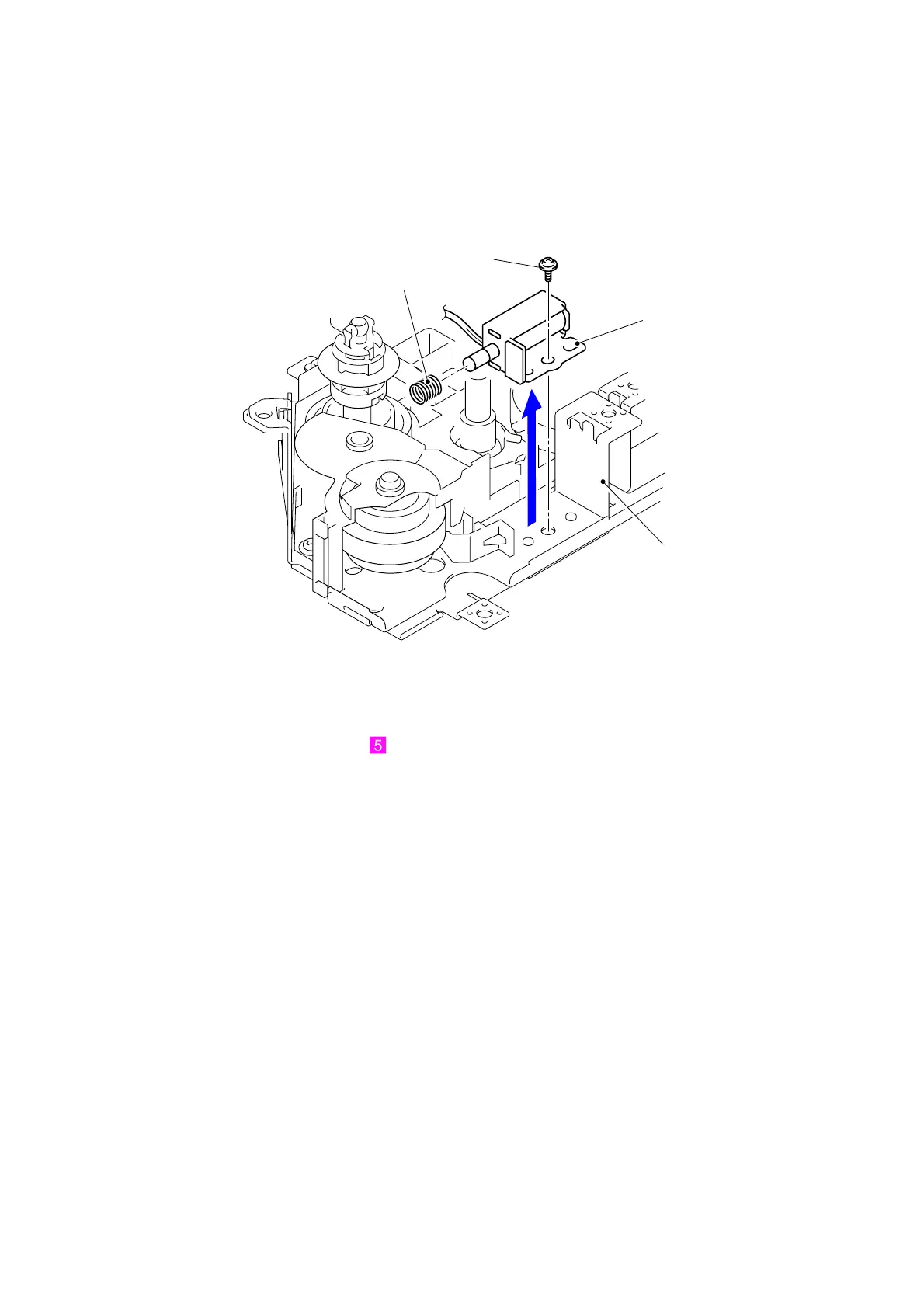

Fig. 3-90
Harness routing: Refer to “ Top Drive ASSY”
Taptite cup S M3x6 SR
Registration solenoid ASSY
Registration solenoid spring
Top drive ASSY
To Next Page
