Brother HL-4570CDW - Completely Blank; Image Distortion

2-99
Confidential

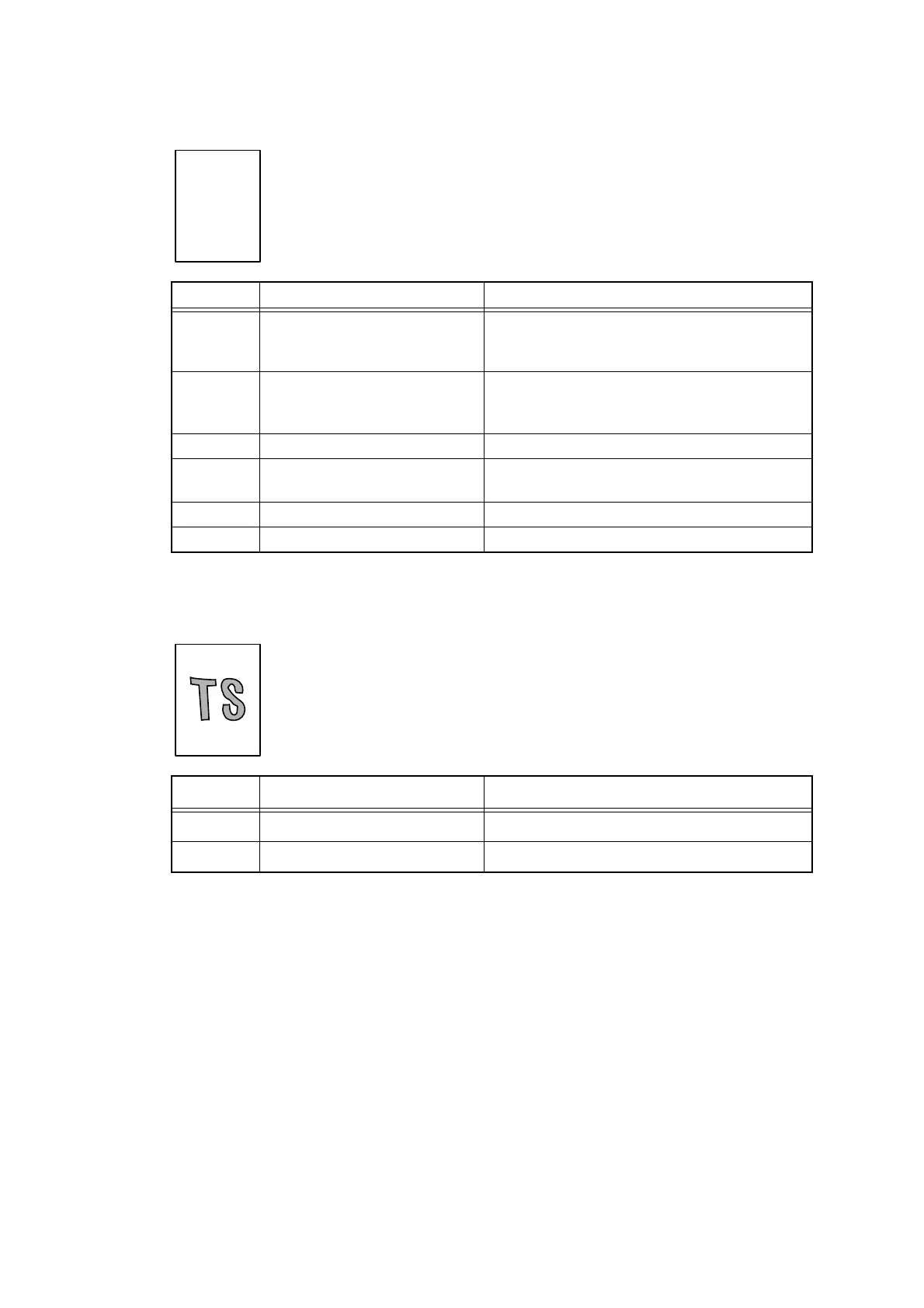

■ Completely blank
■ Image distortion
<User Check>
- Replace the belt unit with a new one.
- Replace the toner cartridge or drum unit with a new one.
Step Cause Remedy
1 Developing bias voltage
conduction failure
Clean the electrodes of the drum unit and
main body. (Refer to Fig. 2-6 (P2-52) and
Fig. 2-9 (P2-53))
2 Dirt on developer roller
electrode
Clean the electrodes of the developer roller
and main body. (Refer to Fig. 2-6 (P2-52)
and Fig. 2-9 (P2-53))
3 Installation failure of laser unit Uninstall and reinstall the laser unit.
4 High-voltage power supply
PCB failure
Replace the high-voltage power supply PCB
ASSY.
5 Laser unit failure Replace the laser unit.
6 Main PCB failure Replace the main PCB ASSY.
<User Check>
- Replace the belt unit with a new one.
Step Cause Remedy
1 Laser unit assembling failure Re-assemble the laser unit.
2 Main PCB failure Replace the main PCB ASSY.
