Brother HL-4570CDW - Filter ASSY

3-87
Confidential
9.35 Filter ASSY

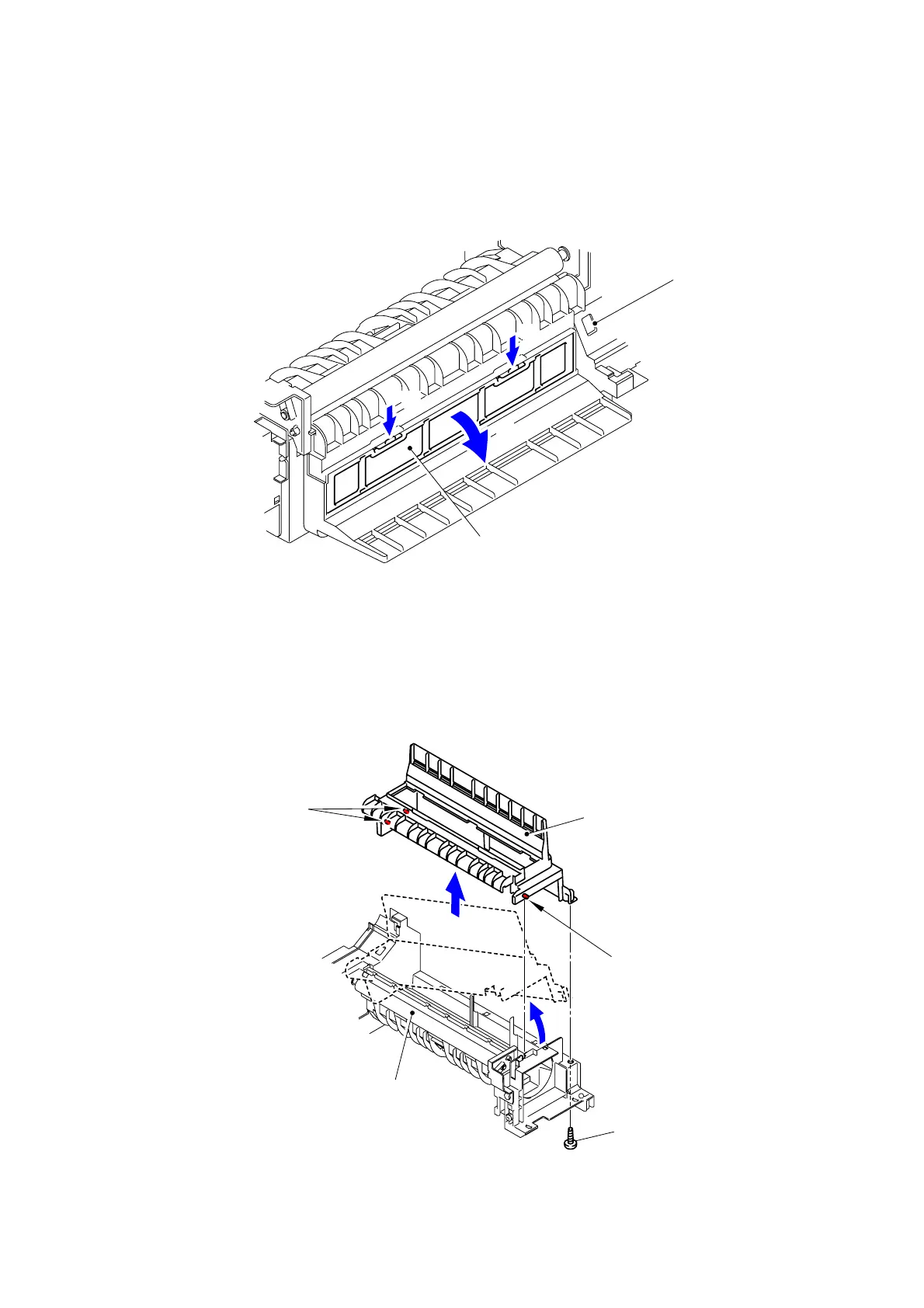

(1) Remove the Toner filter ASSY from the Paper eject ASSY.
Fig. 3-107
(2) Remove the Taptite bind B M4x12 screw to remove the Eject duct from the Paper eject
ASSY.
Fig. 3-108
Paper eject ASSY
Toner filter ASSY
1a
1a
1b
Eject duct
Paper eject ASSY
Pin
Pin
Taptite bind B M4x12
