3-123
Confidential

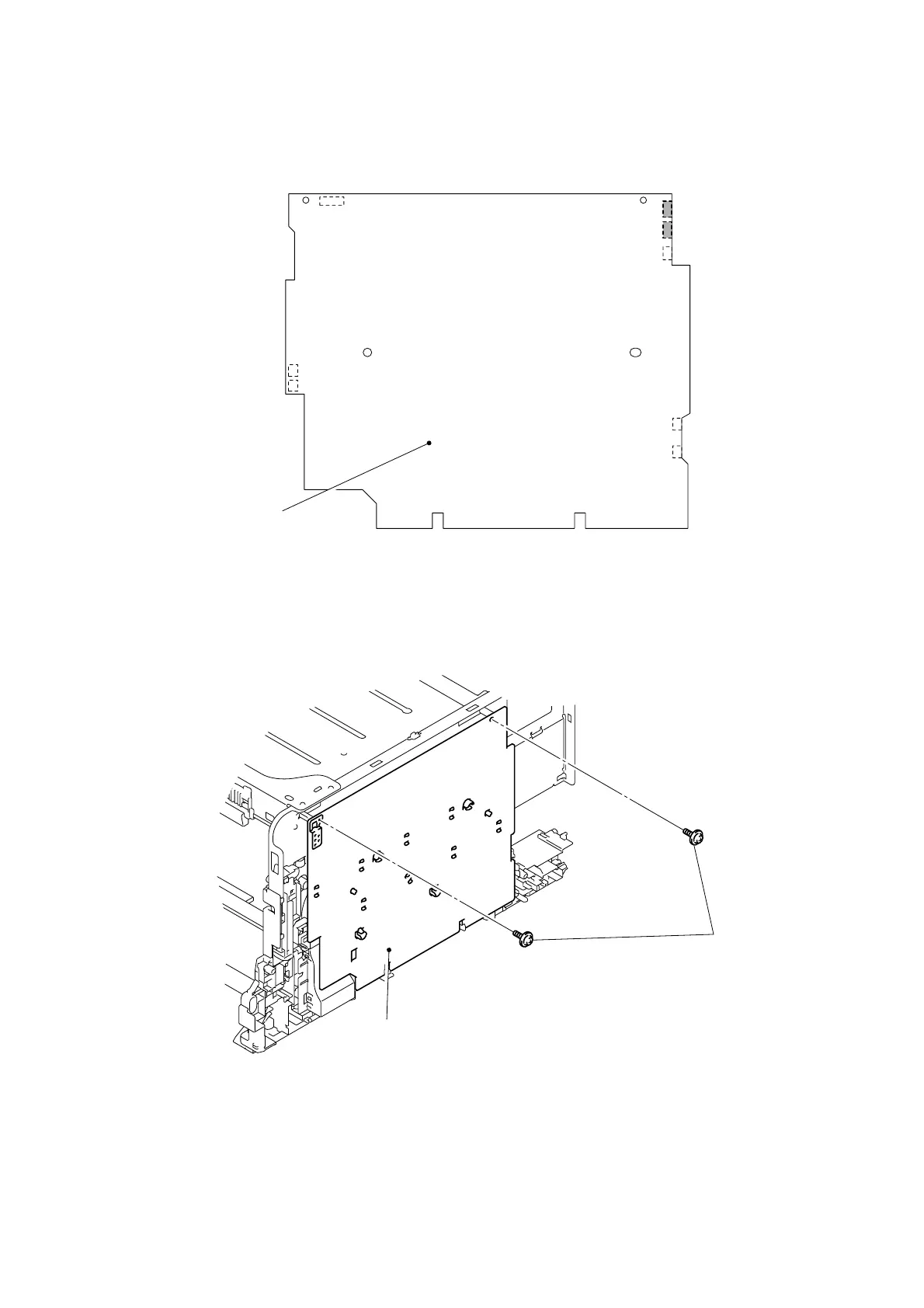

(3) Disconnect the two Connectors (CN1, CN2) from the High-voltage power supply PCB
ASSY.
Fig. 3-166
(4) Remove the two Taptite cup S M3x6 SR screws.
Fig. 3-167
CN1
CN2
CN4
CN5
CN8
CN7
CN6
High-voltage power supply
PCB ASSY
Taptite cup S
M3x6 SR
High-voltage power supply PCB ASSY
