3-44
Confidential

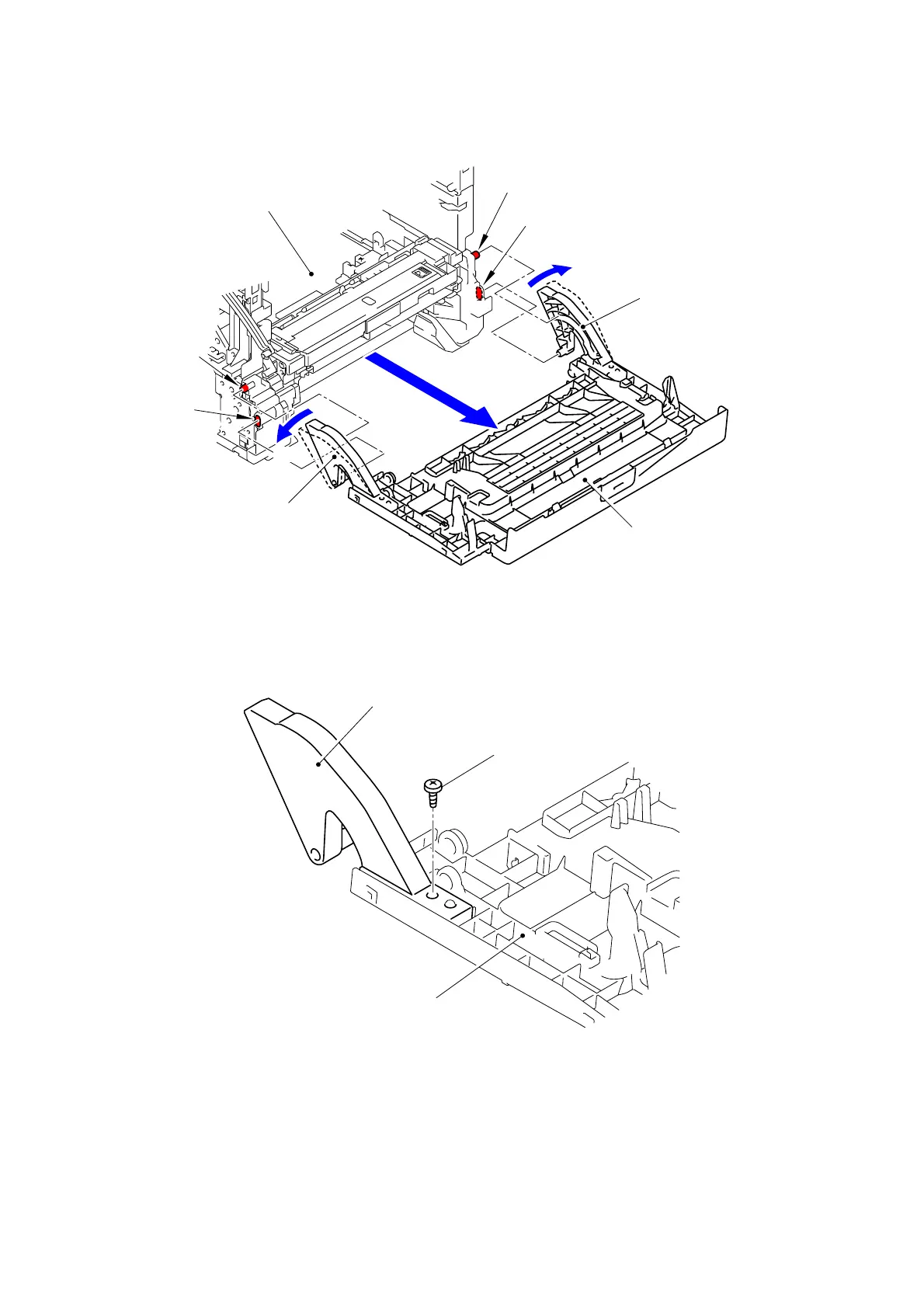

(4) Remove the Front cover from the Main body.
Fig. 3-37
(5) Remove the Taptite bind B M4x12 screw from the Front cover arm L.
Fig. 3-38
Boss
Boss
Front cover arm R
Main body
Boss
Boss
Front cover
Front cover arm L
<Front>
4a
4b
4a
Front cover
Front cover arm L
Taptite bind B M4x12
