3-54
Confidential

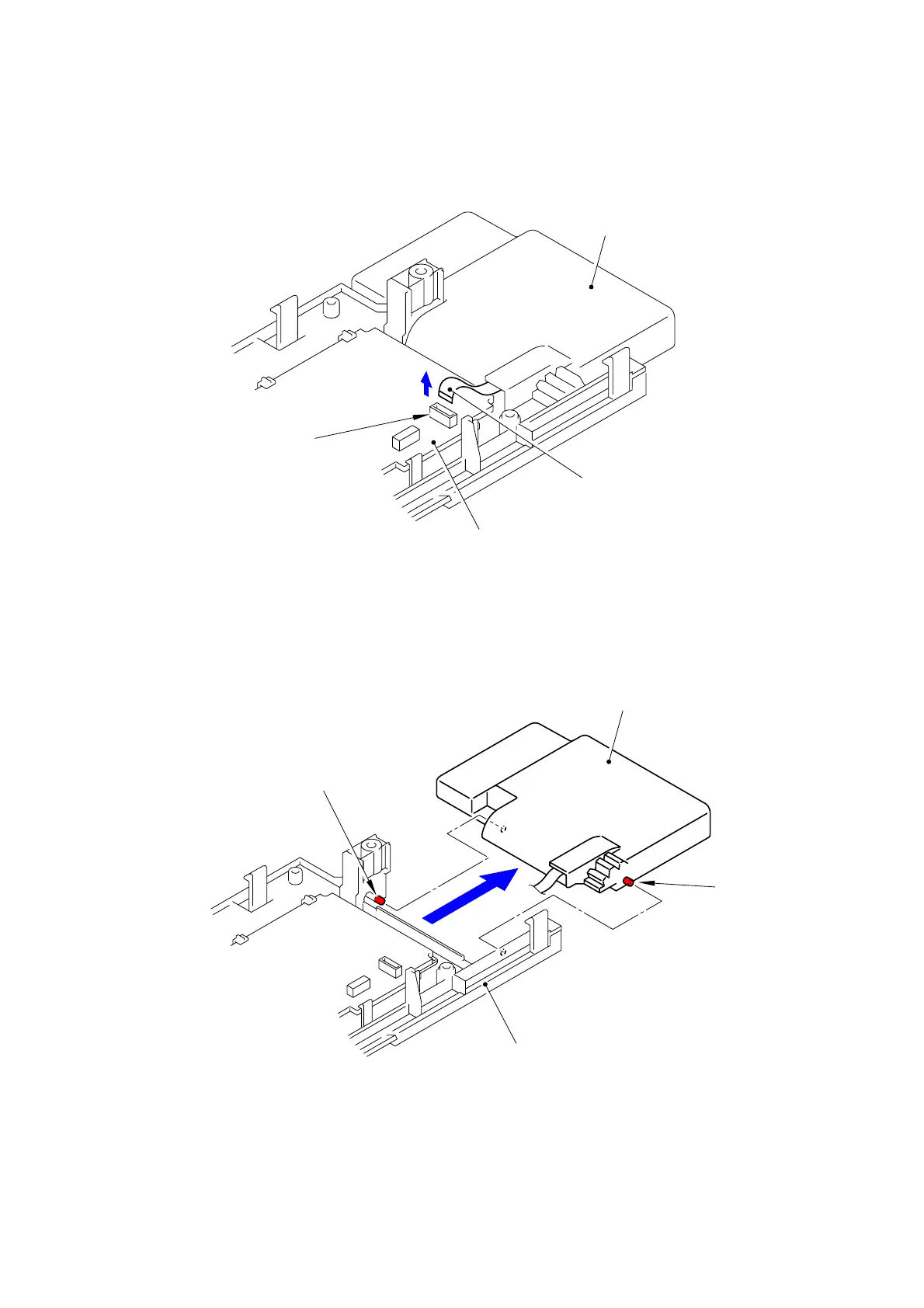

(4) Disconnect the Flat cable (CN1) from the Panel PCB ASSY.
Fig. 3-55
(5) Remove the two Pins to remove the LCD ASSY from the Panel cover ASSY.
Fig. 3-56
Panel PCB ASSY
CN1
Flat cable
LCD ASSY
Pin
Panel cover ASSY
Pin
LCD ASSY
