3-81
Confidential

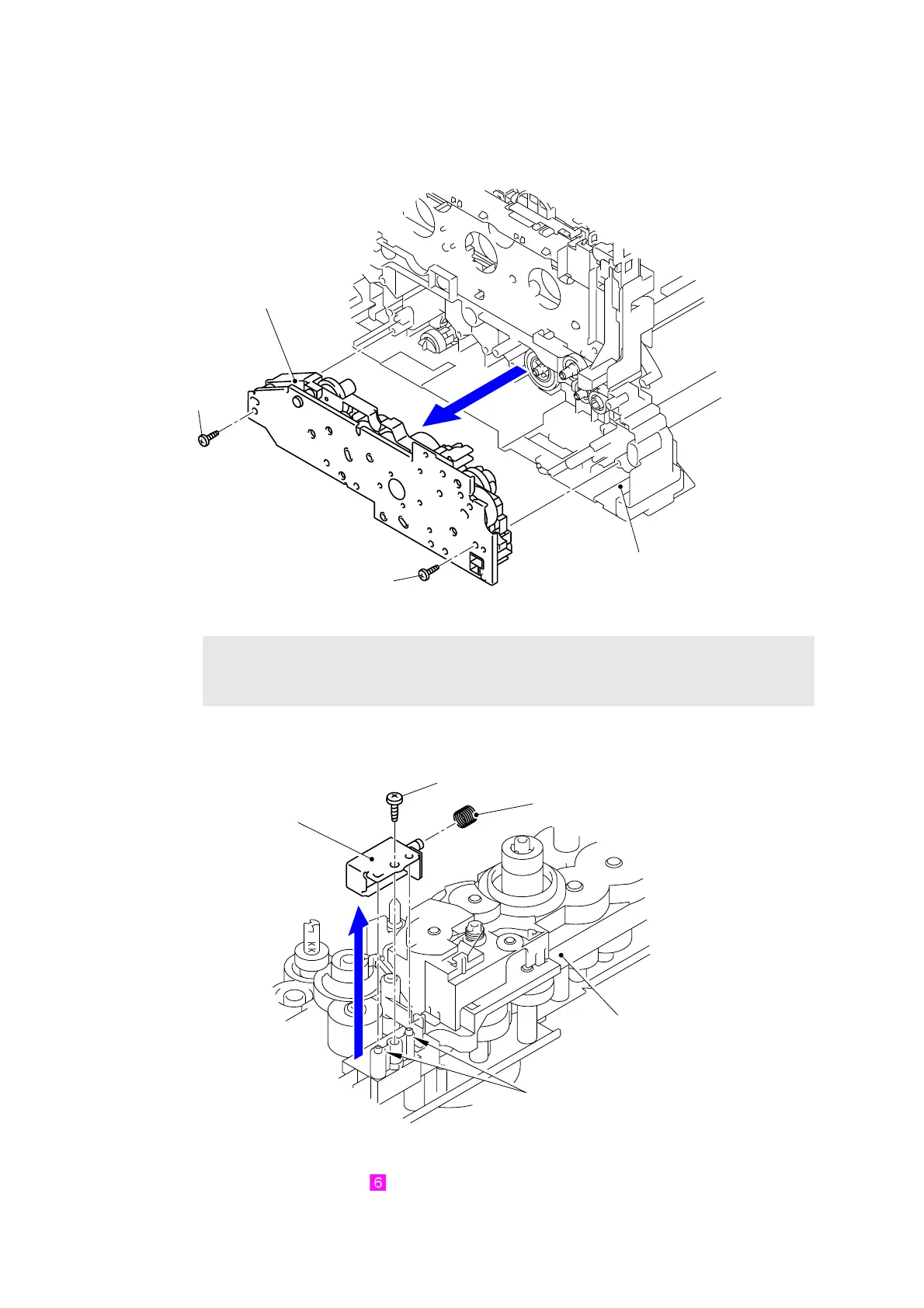

(2) Disconnect the wiring of the PF cleaner drive ASSY.
(3) Remove the two Taptite bind B M4x12 screws to remove the PF cleaner drive ASSY from
the Base frame unit.
Fig. 3-97
(4) Remove the Taptite bind B M3x8 screw to remove the T1 solenoid ASSY and T1
registration solenoid spring from the PF cleaner drive ASSY.
Fig. 3-98
Harness routing: Refer to “ PF Plate ASSY”
Note:
Some of the gears on the PF cleaner drive ASSY easily come off, and thus be careful
not to lose them.
Taptite bind B M4x12
Base frame unit
Taptite bind B M4x12
<Left side>
PF cleaner drive ASSY
Taptite bind B M3x8
PF cleaner drive ASSY
T1 solenoid ASSY
T1 registration solenoid spring
Pin
To Next Page
