Brother HL-4570CDW - Page 327

5-14
Confidential

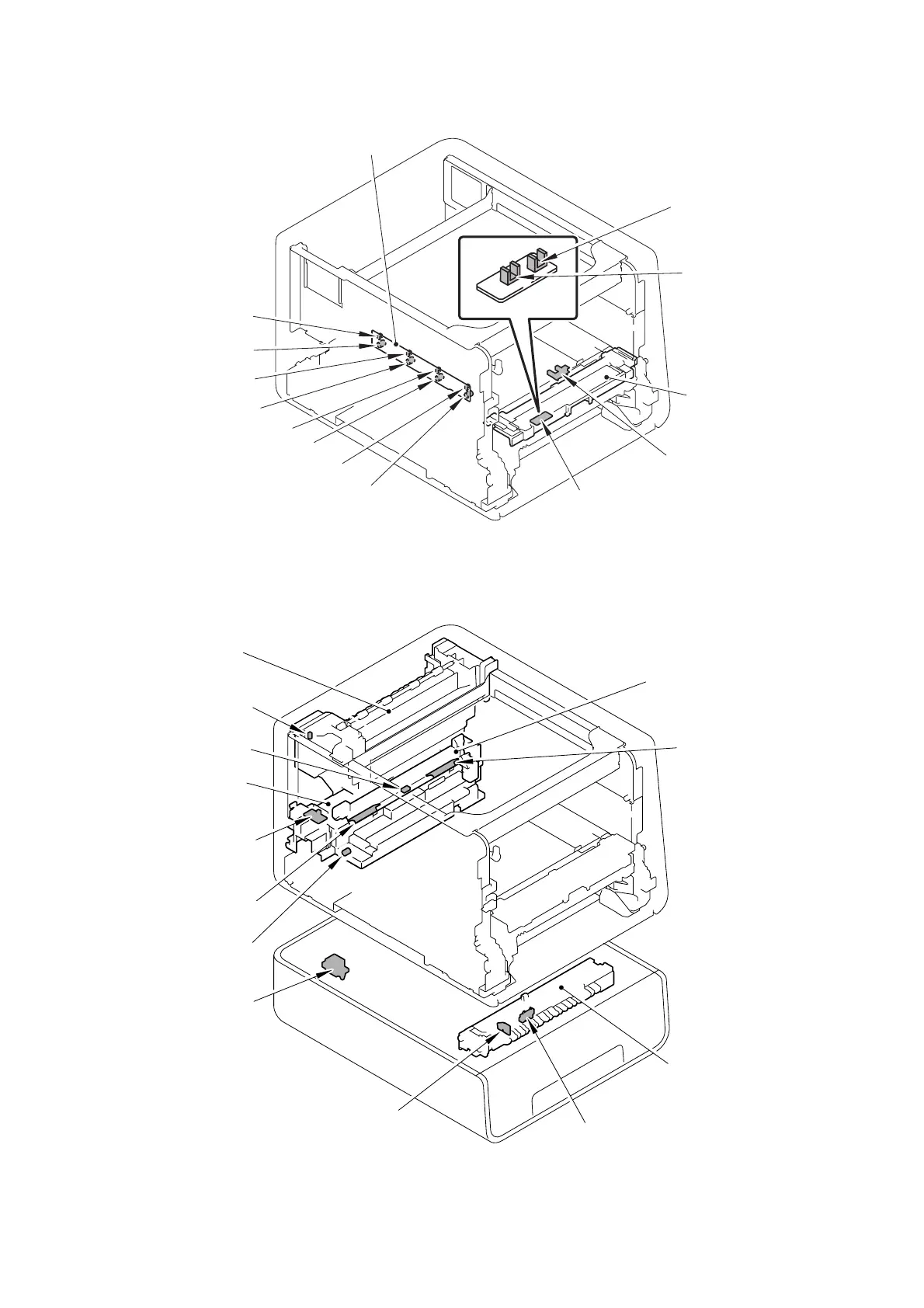

Fig. 5-6
Fig. 5-7
MP upper
Waste toner sensor
MP paper empty/registration front
Toner sensor (Black)
Toner sensor (Yellow)
Toner sensor (Magenta)
Toner sensor (Cyan)
New toner sensor (Black)
New toner sensor (Yellow)
New toner sensor
New toner sensor
(Magenta)
(Cyan)
Toner/New sensor PCB ASSY
MP paper empty sensor
MP registration
front sensor
cover ASSY
sensor PCB ASSY
Registration mark sensor
Registration mark
R PCB ASSY
T2 paper feed
frame unit
T2 paper edge sensor
T2 plate-up detection sensor
T2 connector
Internal temperature
sensor
Registration mark
L PCB ASSY
Paper eject sensor
Low-voltage power
supply unit
Back cover sensor
Paper eject ASSY
ASSY
holder ASSY
Belt unit temperature
sensor
