(18) After replacing the Fuser unit, reset the counter. (Refer to “2.3 Parts Life Reset Function”
in Chapter 5.)
Note:
- Do not apply a physical impact or vibration to the Fuser unit.

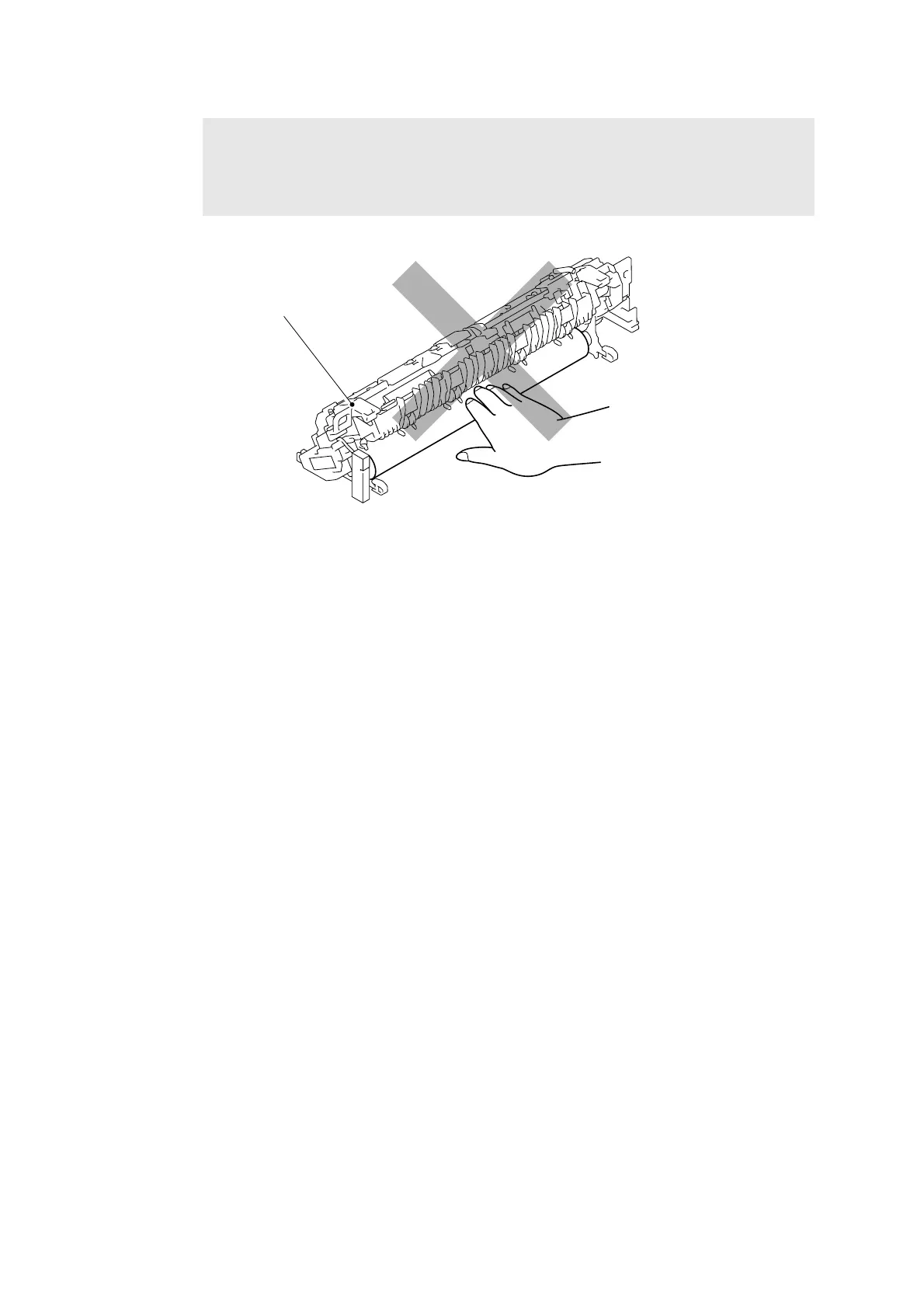

- Do not touch the roller and electrodes as shown in the figure below to prevent
breakage of the Fuser unit.
Fuser unit
