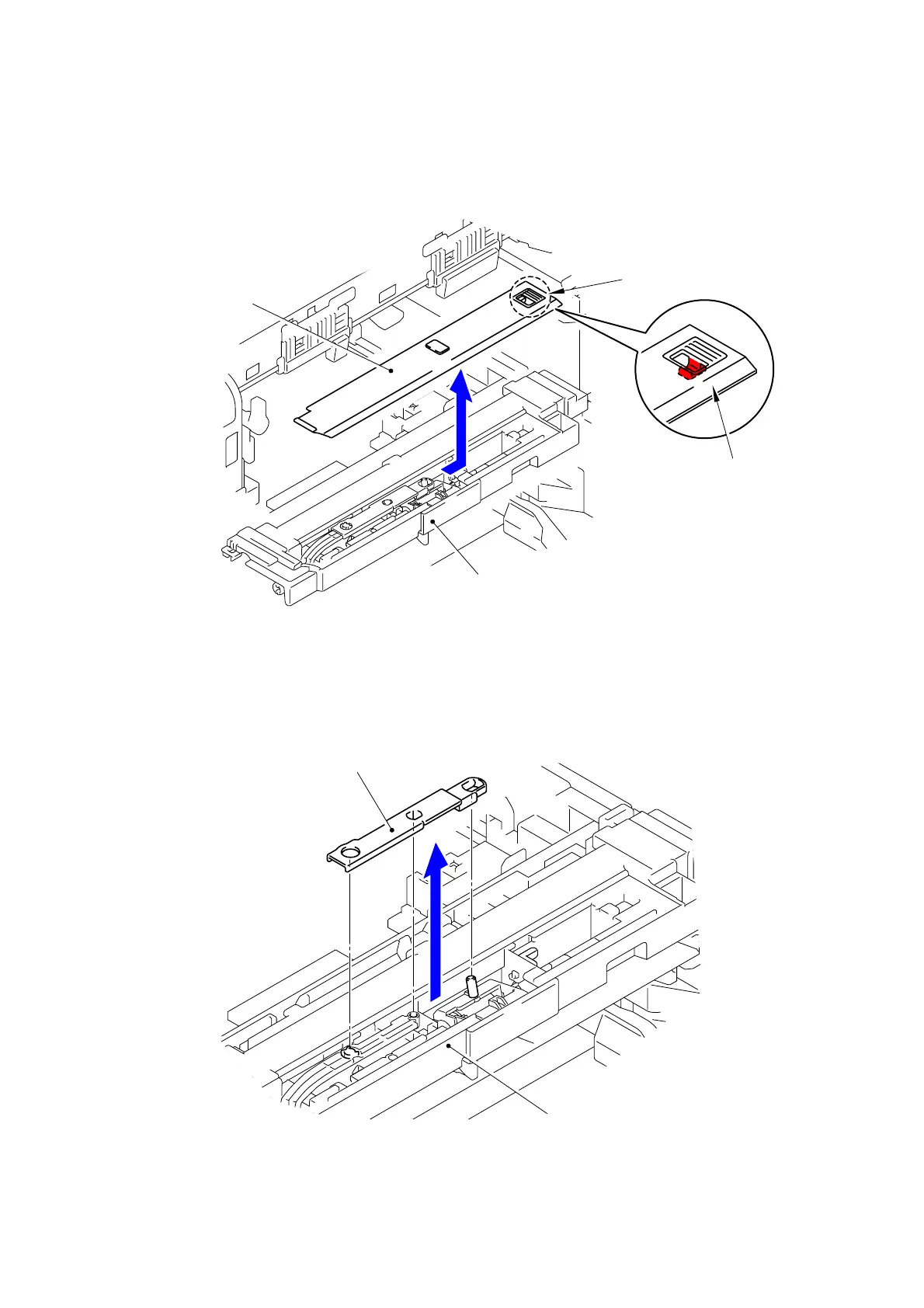

2.1.5 MP paper feeding kit
(1) Press “A” to release the Hook and then remove the MP upper frame cover from the MP
upper cover ASSY.
Fig. 7-50
(2) Remove the MP lift arm B from the MP upper cover ASSY.
Fig. 7-51
MP upper cover ASSY
MP upper frame cover
“A”
Hook
MP lift arm B
MP upper cover ASSY
