3-45
Confidential
9.13 Document Separation Roller ASSY
(1) Turn the Bushing of the Document separation roller ASSY in the direction of the
arrow 1a to unlock it.

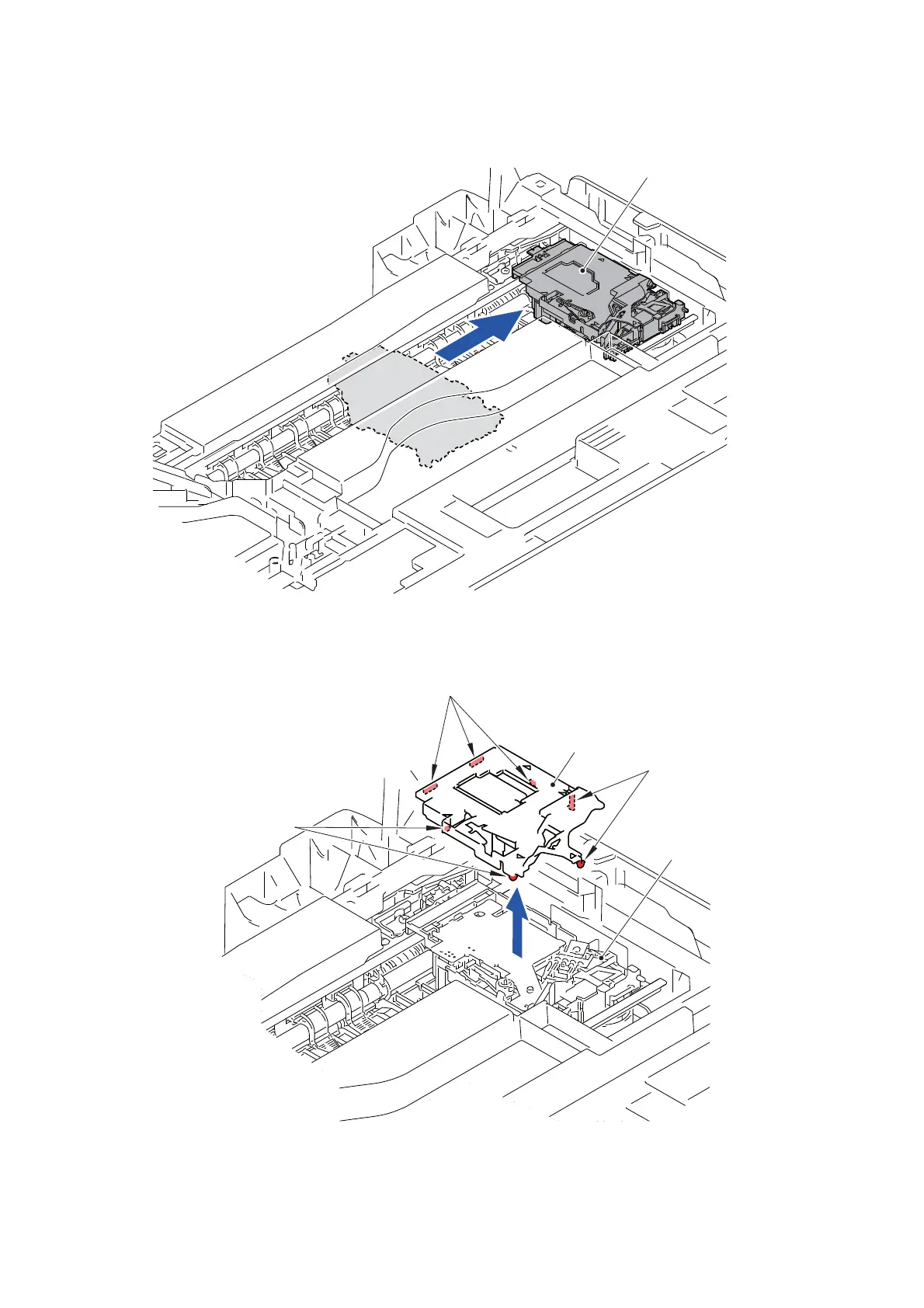

Fig. 3-27
(2) Remove the Document separation roller ASSY from the ADF unit.
Fig. 3-28
Document separation roller ASSY
ADF unit
Bushing
A view
<A view>
1a
1b
Document separation roller ASSY
ADF unit
2c
2a
2b
