9.14 ADF Separation Pad Holder ASSY
(1) Remove the screw (TAPTITE CUP B M3x10) from the ADF separation pad holder
ASSY.
(2) Release the two Hooks and remove the ADF separation pad holder ASSY from the
ADF unit.

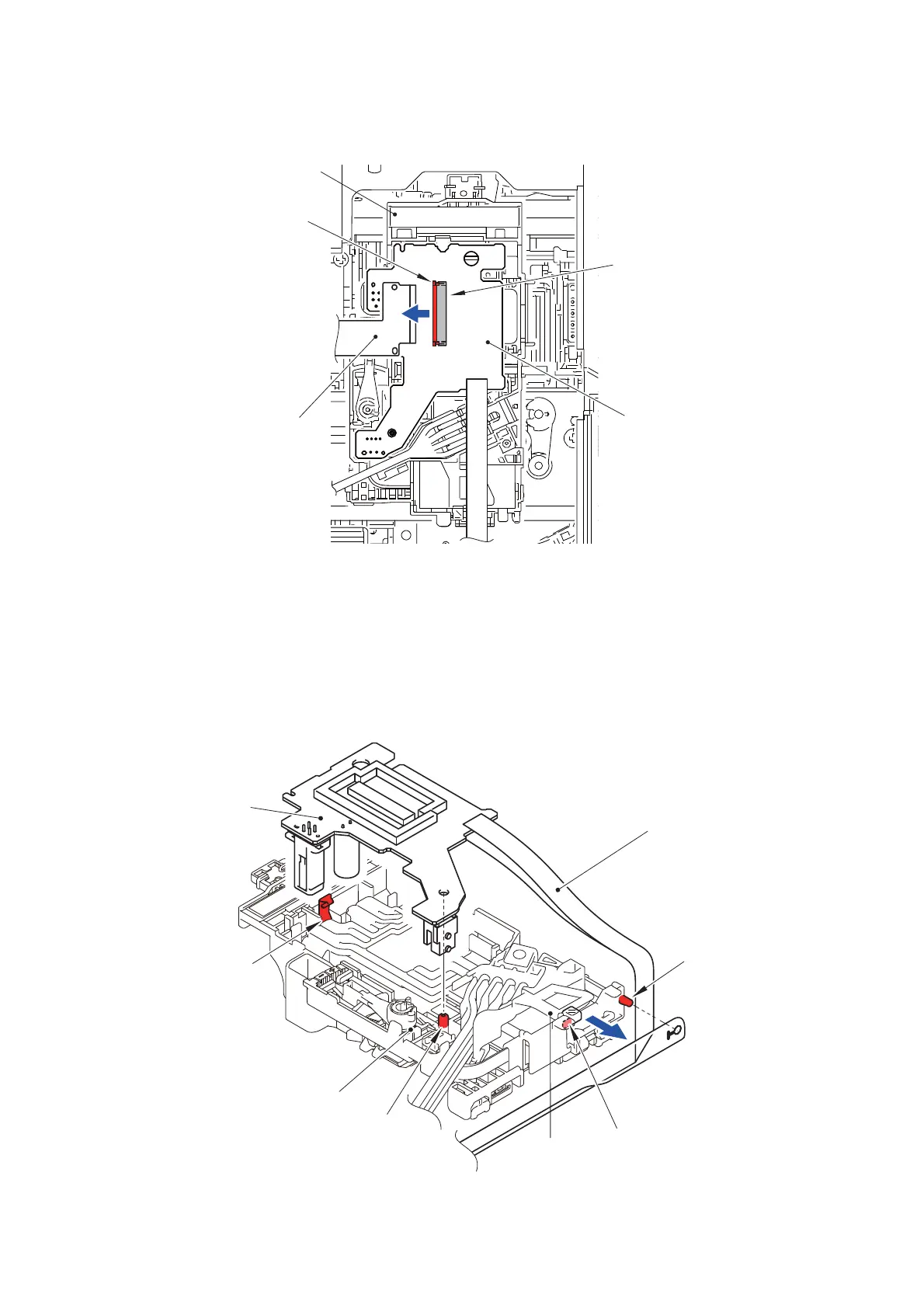

Fig. 3-29
TAPTITE CUP B M3x10
ADF unit
ADF separation pad holder ASSY
Hooks
