3-66
Confidential

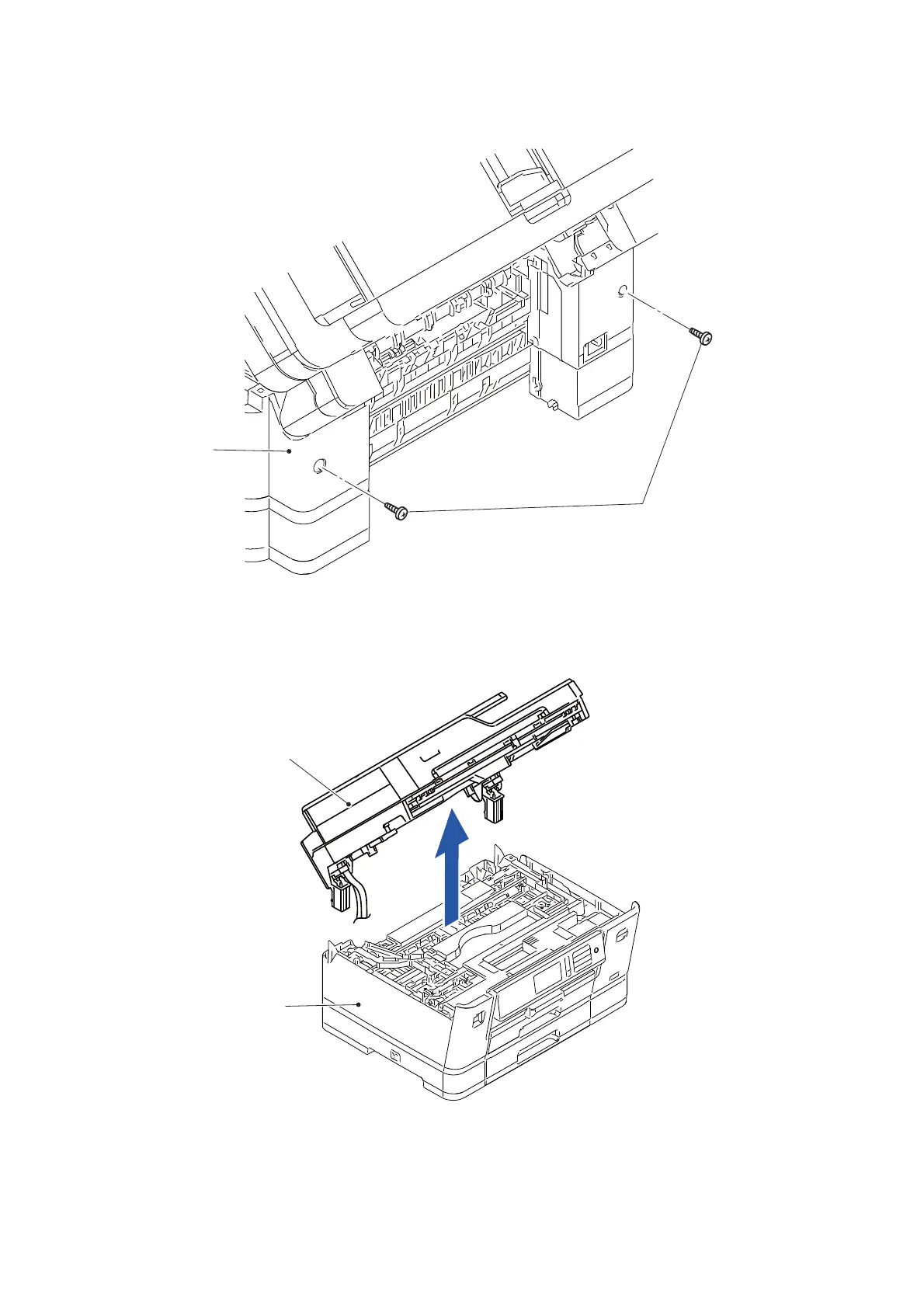

9.25 Control Panel ASSY
(1) Remove the screw (SCREW CUP M3x6) and remove the FG wire TP from the
Modem PCB frame.
Fig. 3-62
(2) Release the Lock of the connector (CN11) and remove the Panel flat cable from
the Main PCB.
Fig. 3-63
SCREW CUP
FG wire TP
M3x6
Modem PCB frame
Lock
CN11
Main PCB
Panel flat cable
