9.55 Maintenance Unit
(1) Remove the Air vent tube and Drain tube from the Ink ABS upper box ASSY.

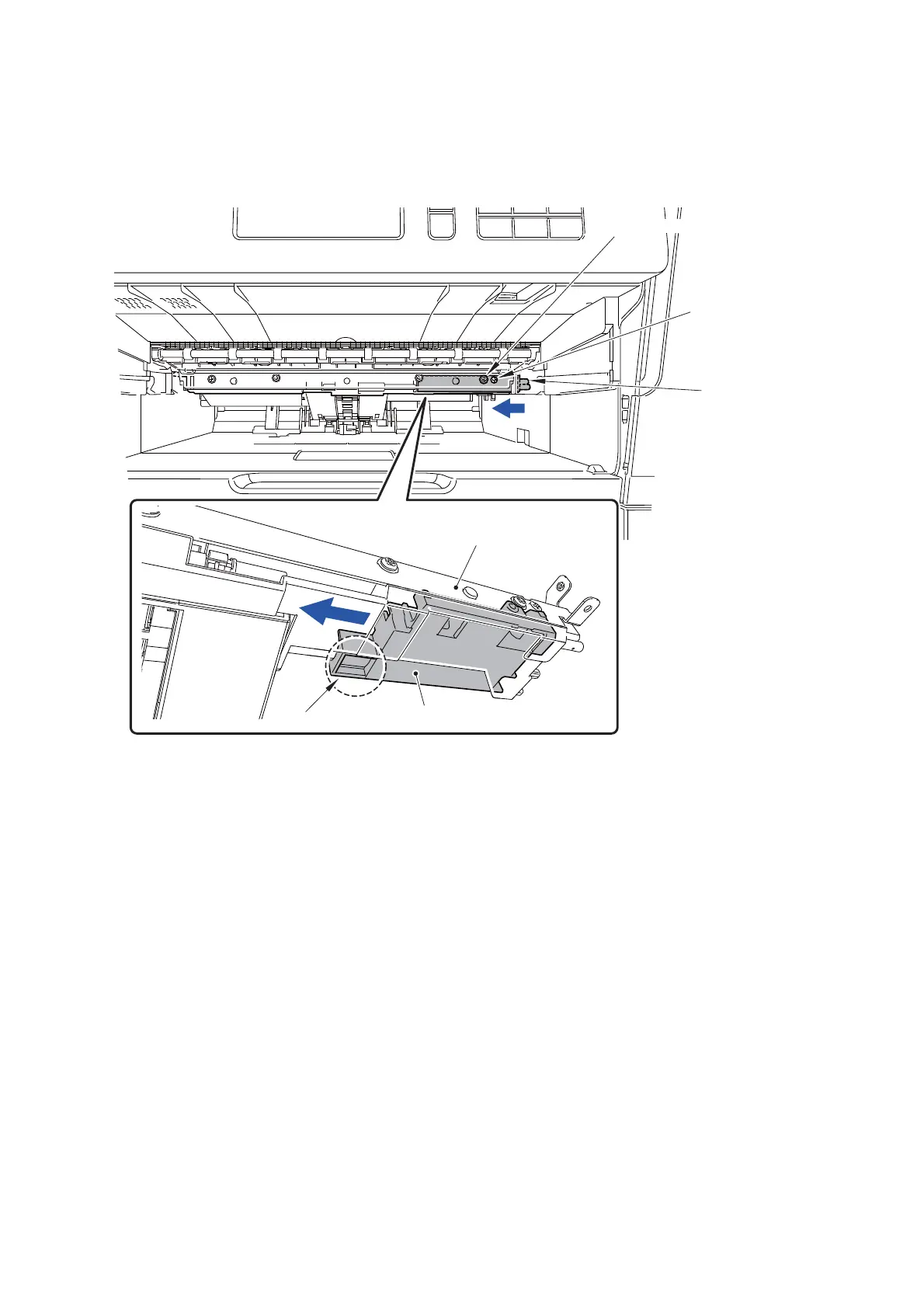

Fig. 3-142
(2) Remove the two screws (TAPTITE CUP B M3x10) and remove the Ink ABS upper
box ASSY from the Lower cover.
Fig. 3-143
Guide
Guide
Ink ABS upper
box ASSY
Lower cover
Air vent tube
Drain tube
TAPTITE CUP B M3x10
Ink ABS upper box ASSY
Lower cover
