3-114
Confidential

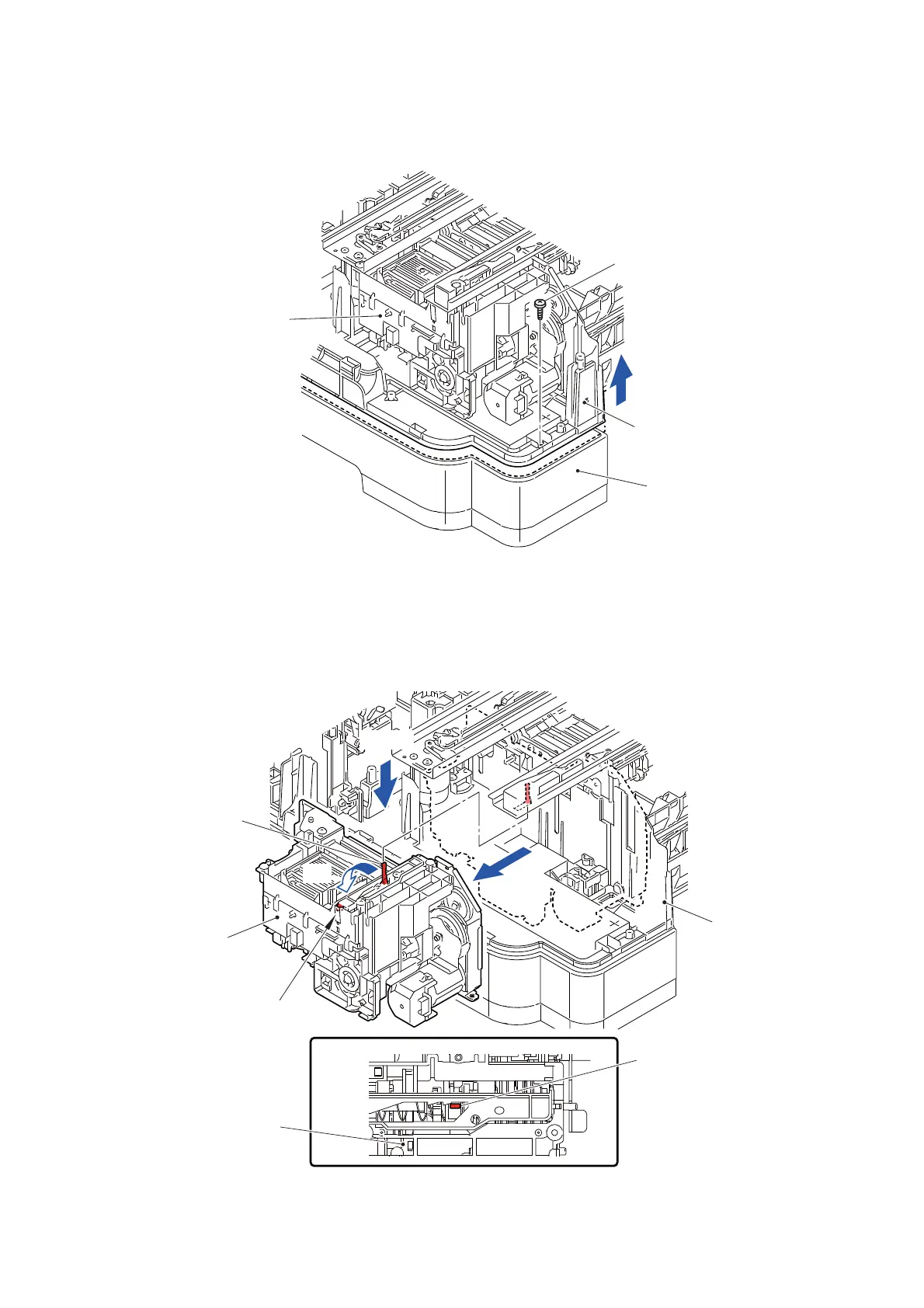

(3) Remove the screw (SCREW CUP M3x6) and remove the Main PCB earth frame
R2 from the Lower cover.
Fig. 3-144
(4) Release the wiring of the Maintenance unit.
(5) Remove the screw (TAPTITE CUP B M3x10) and two screws (SCREW BIND
M3x6) and remove the Maintenance unit from the Lower cover.
(6) Remove the ASF motor harness from the Maintenance unit.
Fig. 3-145
SCREW CUP M3x6
Main PCB earth
Lower cover
frame R2
SCREW BIND M3x6
Maintenance unit
ASF motor harness
5
Lower cover
6
TAPTITE CUP B M3x10
SCREW BIND M3x6
